APC APDU9981EU3 Rack PDU 9000 Switched, ZeroU, 11.0kW, 230V, 3-Phase Input, (21) C13 & (3) C19 Ports

MPN: APDU9981EU3
UPC: 731304404262
PPN: APC-APDU9981EU3

$3910.45

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

It is a switched rack PDU with a maximum current capacity of 16A and an input voltage of 400V. It includes 21 IEC 60320 C13 outlets and 3 IEC 60320 C19 outlets, connected via an IEC 60309 16A 3P+N+PE plug. The PDU is designed for ZeroU mounting.

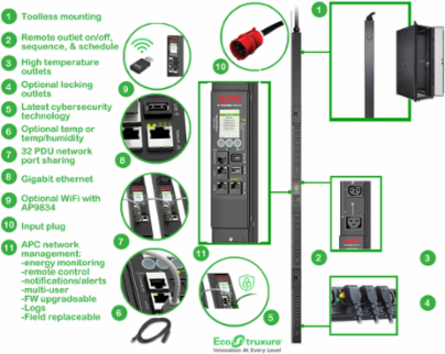

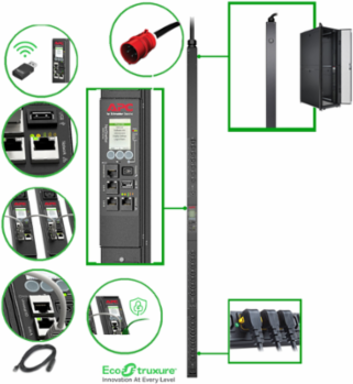

Features

It can handle a maximum power capacity of 11.0kW, suitable for high-power applications
It features 21 IEC C13 outlets and 3 IEC C19 outlets, providing ample connectivity options
Designed for ZeroU mounting, it saves valuable rack space and allows for efficient cable management
Supports remote monitoring and control, enabling users to manage power distribution from a distance

Documentation & Downloads

Specifications

Additional

Power Capacity	11.0 kW
Voltage	230 V
Number of C13 Outlets	21
PDU Type	Switched
Load Capacity	11000 VA

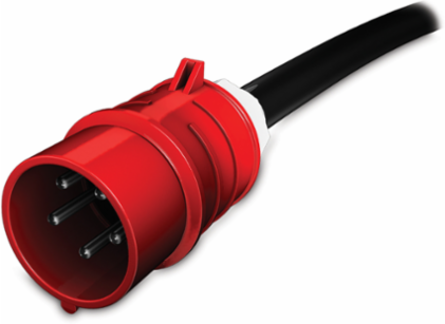

Input Plug Type	IEC 60309 16A 3P+N+PE
Width	2.17 in (5.5 cm)
Net Weight	15.43 lb (7 kg)
Mounting Position	Vertical
Operating Temperature Range	23 to 140 F (-5 to 60 C)
Operating Humidity Range	5 to 95%
Operating Altitude	0 to 10000 ft
Compliance	cUL Listed, FCC part 15 class A, UL Listed, VDE
RoHS	Compliant with Exemptions
Country of Origin	India

Input Voltage	400 V 3 phase
Phase	3-phase
Number of C19 Outlets	3
Max Line Current	16 A
Cord Length	6 ft (1.83 m)
Height	70.55 in (179.2 cm)
Depth	1.81 in (4.6 cm)
Mounting Location	Side
Rack Units	0U
Storage Temperature Range	-13 to 149 F (-25 to 65 C)
Storage Humidity Range	5 to 95%
Storage Altitude	0 to 50000 ft (0 to 15240 m)
Standards	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, ICES-003
Mercury Free	Yes
