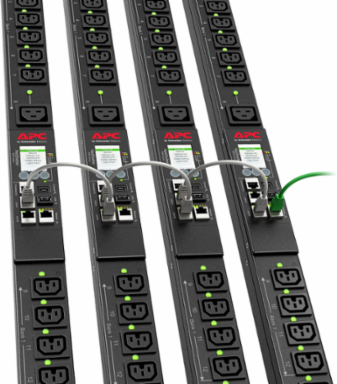

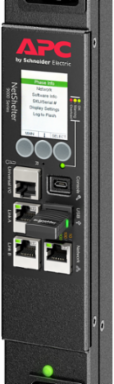

APC APDU9961 Rack PDU 9000 Switched, 5.7kW, 200/208V, 0U, 70.55 Inch Height, 6 ft Cord
- MPN: APDU9961
- UPC: 731304356318
- PPN: APC-APDU9961
CAD
$2895.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
It is a switched rack PDU with a maximum current capacity of 20A and an input voltage of 208V. It includes 21 C13 and C15 outlets and 3 C19 and C21 outlets, connected via a NEMA L21-20P input connection. The PDU has a ZeroU form factor and a cord length of 6 feet (1.8 meters). It supports remote monitoring and user-defined alarms, with outlet-level on or off switching capabilities. The unit is UL Listed and CSA certified, ensuring high safety and performance standards.

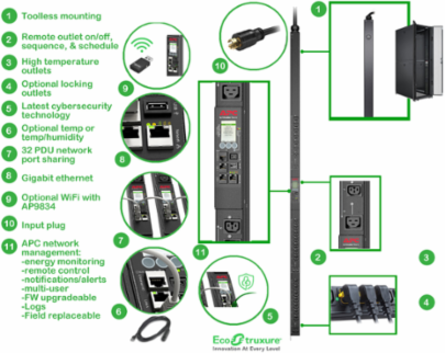

Features
- It can handle a maximum power capacity of 5.7kW, ideal for various applications
- It features 21 IEC C13 and C15 outlets and 3 IEC C19 and C21 outlets, providing extensive connectivity options

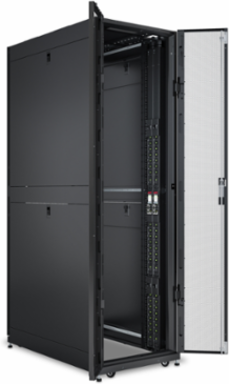

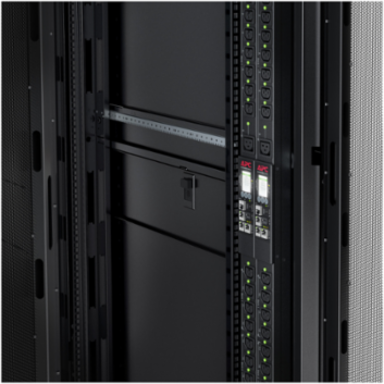

- Designed for ZeroU mounting, it saves rack space and facilitates better cable management
- Supports remote monitoring and control, allowing for efficient power management
Documentation & Downloads
Specifications
Additional
| Input Voltage | 208 V 3 phase |
|---|---|
| Power Capacity | 5.7 kW |
| Load Capacity | 5700 VA |
| Max Line Current | 20 A |
| Height | 70.55 in (179.2 cm) |
| Depth | 1.81 in (4.6 cm) |
| Cord Length | 6 ft (1.83 m) |

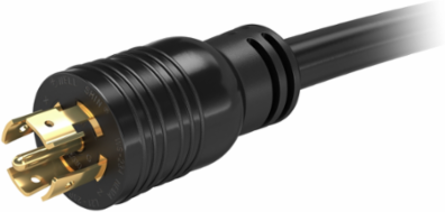

| Input Connection Type | NEMA L21-20P |
| Outlet Type and Quantity | 21 C13/C15, 3 C19/C21 |
| RoHS | Compliant with Exemptions |
| Mercury Free | Yes |
| Standards | IEC 62368-1 |
| Relative Humidity | 5 to 95% |
| Ambient Air Temperature for Storage | -13 to 149 F |
| Storage Altitude | 0 to 50,000 ft |
| Nominal Output Voltage | 208 V |
|---|---|
| Input Frequency | 50/60 Hz |
| Line Rated Current | 16 A |
| Input Current Limits | 20 A |
| Width | 2.17 in (5.5 cm) |
| Weight | 15.23 lb (6.91 kg) |
| Mount Position | side, vertical |
| Rack Height | 0U |
| Communication Network Type | 10/100/1000BASE-T |
| WEEE | EU Waste Compliant |
| Approvals | cUL Listed, FCC Part 15 Class A |
| Ambient Air Temperature for Operation | 23 to 140 F |
| Operating Altitude | 0 to 10,000 ft |
| Storage Relative Humidity | 5 to 95% |
