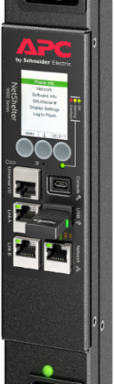

APC APDU9970 Rack PDU 9000 Switched, ZeroU, 30A, 120/208V, (16) 5-20R, (7) C13/C15, (1) C19/C21
- MPN: APDU9970
- UPC: 731304356356
- PPN: APC-APDU9970
CAD
$3014.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Rack PDU 9000 Switched, ZeroU, 30A, 120/208V, (16) 5-20R, (7) C13/C15, (1) C19/C21

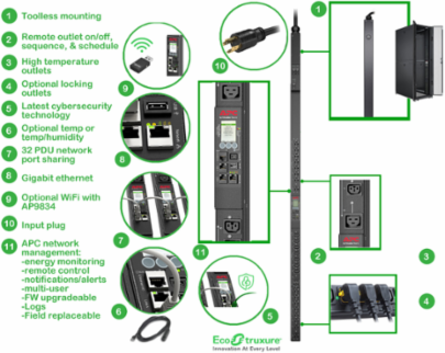

Features

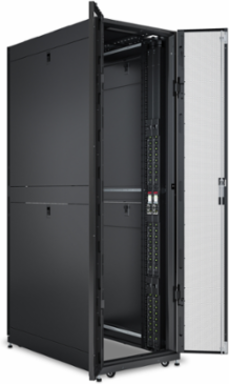

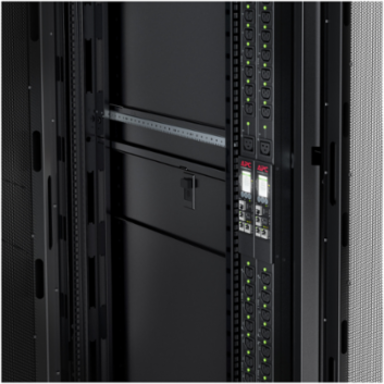

- Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures. — Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
Documentation & Downloads
Specifications
Additional
| Voltage | 120 V, 208 V |
|---|---|
| Input Frequency | 50/60 Hz |
| Cord Length | 10 ft (3.05 m) |
| Width | 2.20 in (5.6 cm) |
| Weight | 20.79 lb (9.43 kg) |
| Rack Units | 0U |
| RoHS | Compliant with Exemptions |
| Mercury Free | Yes |
| Relative Humidity | 5 to 95% |
| Ambient Air Temperature for Storage | -13 to 149 F (-25 to 65 C) |
| Storage Altitude | 0 to 50000 ft (0 to 15240 m) |
| Communication Network Type | 10/100/1000BASE-T |
| Warranty | 36 months |
| Take Back | No |

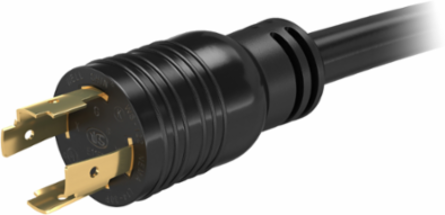

| Input Connection Type | NEMA L14-30P |
|---|---|
| Load Capacity | 4992 VA |
| Height | 72.01 in (182.9 cm) |
| Depth | 1.81 in (4.6 cm) |
| Mounting Position | side, vertical |
| Approvals | cUL Listed, FCC part 15 class A |
| Material Compliance | EU RoHS Compliant with Exemptions |
| Ambient Air Temperature for Operation | 23 to 140 F (-5 to 60 C) |
| Operating Altitude | 0 to 10000 ft |
| Storage Relative Humidity | 5 to 95% |
| Communication Port Protocol | SNMP, Redfish |
| Customs Number | 8537109170 |
| Reach | Contains SVHC above threshold |
