APC APDU9959NA3 Rack PDU Switched 20A 208V 0U, (21) C13/C15 & (3) C19/C21, 12.37 lb

MPN: APDU9959NA3
UPC: 731304356301
PPN: APC-APDU9959NA3

$2283.58

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

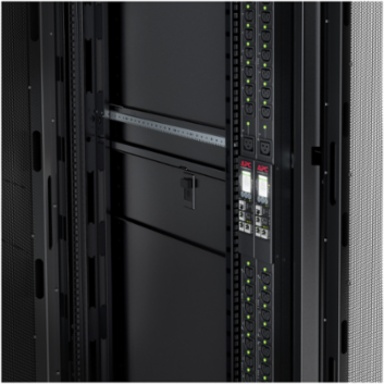

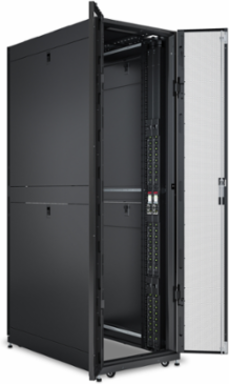

It is a switched rack PDU with maximum current capacity of 20A and an input voltage of 208V. It features 21 C13 and C15 outlets and 3 C19 and C21 outlets, connected via an IEC 60320 L6-20P plug. This PDU is designed for ZeroU mounting.

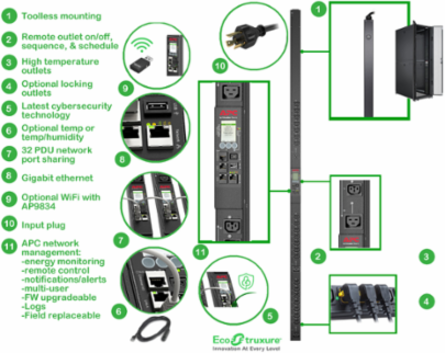

Features

It can handle a maximum power capacity of 11.5kW, suitable for demanding applications

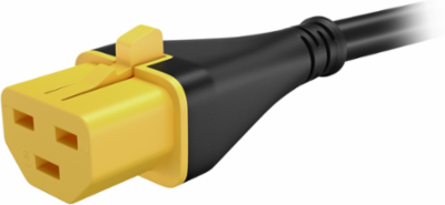

It includes 21 IEC C13 and C15 outlets and 3 IEC C19 and C21 outlets, offering extensive connectivity

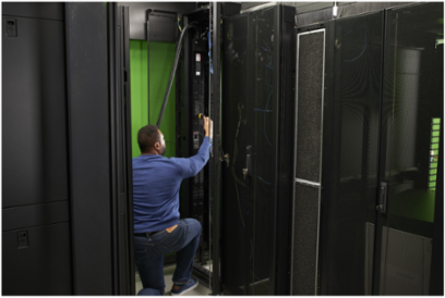

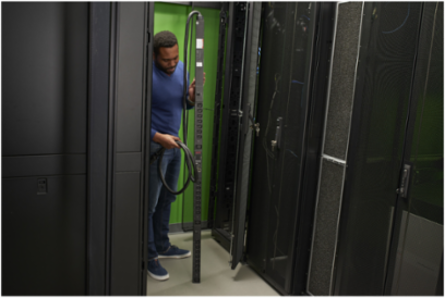

The ZeroU mounting design helps save rack space and improves cable management

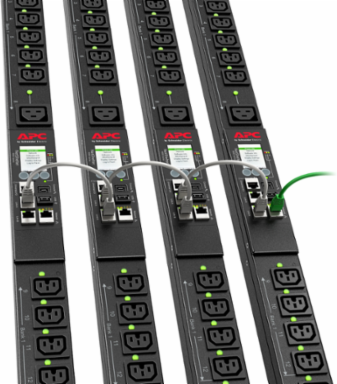

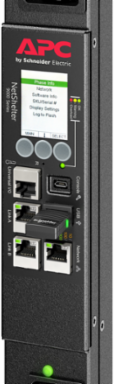

Allows for remote monitoring and control, enhancing power management capabilities

Documentation & Downloads

Specifications

Additional

Voltage	200 V, 208 V
Load Capacity	3300 VA
Operating Temperature Range	23 to 140 F (-5 to 60 C)
Height	70.75 in (179.7 cm)
Depth	1.81 in (4.6 cm)
Mounting Position	side, vertical
Outlet Quantity and Type	21 C13/C15, 3 C19/C21
Standards	IEC 62368-1
Relative Humidity (Operating)	5 to 95 %
Operating Altitude	0 to 10000 ft
Communication Port Protocol	SNMP, Redfish
PDU Type	Switched

Amperage	20 A
Input Voltage	200 V, 208 V

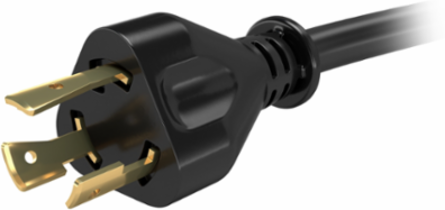

Input Connection Type	IEC 60320 L6-20P
Width	2.17 in (5.5 cm)
Weight	12.37 lb (5.61 kg)
Rack Units	0U
Compliance	cUL Listed, FCC part 15 class A, PSE, RoHS Compliant with Exemptions, Mercury Free, WEEE
Storage Temperature Range	-13 to 149 F (-25 to 65 C)
Storage Relative Humidity	5 to 95 %
Storage Altitude	0 to 50000 ft
Communication Network Type	10/100/1000BASE-T
Warranty	36 months
