APC AP8866 Metered Rack PDU 0U, 17.2kW, 208V, 6 C13, 12 C19, 20.94 lb, 72.01 Inch Height
- MPN: AP8866
- UPC: 731304289906
- PPN: APC-AP8866
CAD
$4895.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Metered Rack PDU 0U, 17.2kW, 208V, 6 C13, 12 C19, 20.94 lb, 72.01 Inch Height
Documentation & Downloads
Specifications
Additional
- Power
- 17.2 kW
- Output Voltage
- 208 V
- Input Current Limit
- 60 A
- Cord Length
- 6 ft (1.83 m)
- Width
- 2.20 in (5.6 cm)
- Net Weight
- 20.94 lb (9.5 kg)
- Rack Units
- 0U

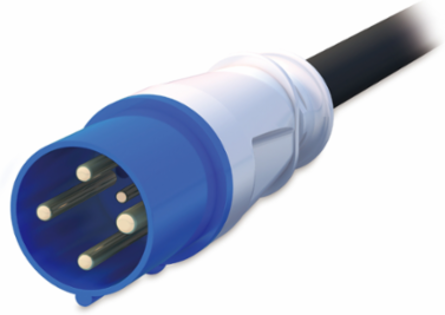

- Input Plug Type
- IEC 60309 60 A 3P+PE
- Storage Temperature Range
- -13–149 °F (-25–65 °C)
- Operating Altitude
- 0–10000 ft
- Certifications
- cUL Listed, UL Listed, VCCI Class A
- RoHS Compliance
- Compliant with Exemptions
- Lead Free
- Yes
- REACH SVHC Free
- Yes
- Energy Efficiency
- Energy efficient product
- Country of Origin
- India
Input Voltage208 V 3 phase
Amperage48 A
Load Capacity17300 VA
Height72.01 in (182.9 cm)
Depth2.01 in (5.1 cm)
Mounting TypeRack-mounted
Mounting Positionside, vertical
Operating Temperature Range23–140 °F (-5–60 °C)
Relative Humidity (Operating)5–95 %
Storage Altitude0–50000 ft (0–15240 m)
Standards ComplianceEN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 class A, ICES-003
Mercury FreeYes
WEEE ComplianceEU Waste Collection Compliant
EnvironmentalContains halogen above thresholds
Customs Number8537109170
