APC APDU9966 Rack PDU 9000 Switched 17.3kW 208V 6 ft Cord, 72.17 Inch Height, 30.86 lb Weight
- MPN: APDU9966
- UPC: 731304356332
- PPN: APC-APDU9966
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

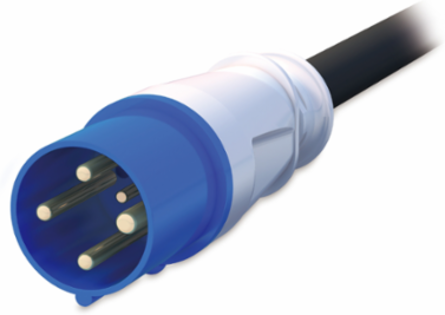

It is a switched rack PDU with a maximum current capacity of 60A and an input voltage of 208V. It includes 20 C13 and C15 outlets and 12 C19 and C21 outlets, connected via an IEC 60309 60A 3P + PE plug. It supports a maximum line current of 48A.

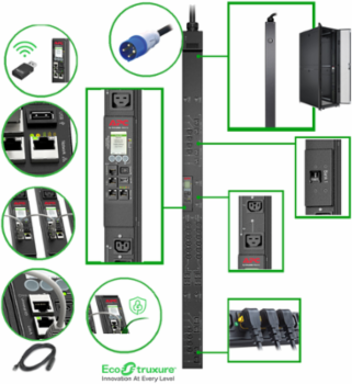

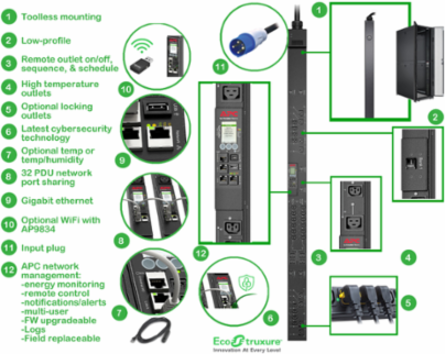

Features
- It can handle a maximum power capacity of 17.3kW, making it suitable for very high-power applications
- It features 20 IEC C13 and C15 outlets and 12 IEC C19 and C21 outlets, providing extensive connectivity options

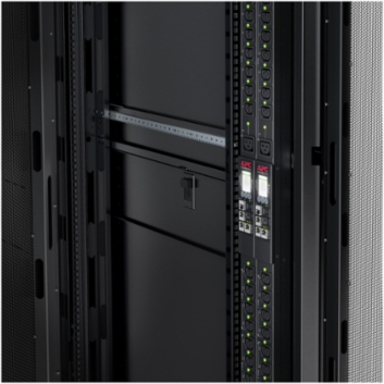

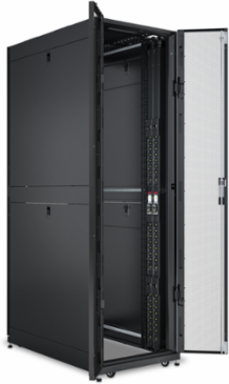

- Designed for ZeroU mounting, it saves rack space and facilitates better cable management

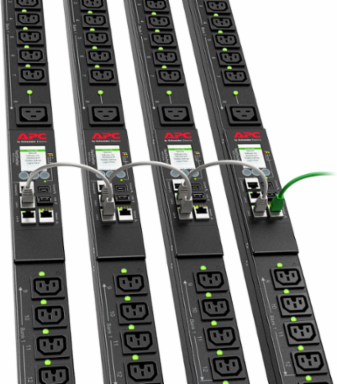

- Supports remote monitoring and control, allowing for efficient power management
Documentation & Downloads
Specifications
Additional
| Voltage | 208 V 3 phase |
|---|---|
| Input Current Limits | 60 A |
| Nominal Output Voltage | 208 V |
| Depth | 2.99 in (7.6 cm) |
| Height | 72.17 in (183.3 cm) |
| Weight | 30.86 lb (14 kg) |
| Mount Position | side |
| Approvals | cUL Listed, FCC part 15 class A |
| REACH | Contains Substances of Very High Concern |
| Product Orientation | no preference |
| Color | Black |
| Number of Cables | 1 |
| Max Line Current | 48 A |
| Communication Network Type | 10/100/1000BASE-T |
| Ambient Air Temperature for Operation | 23 to 140 F (-5 to 60 C) |
| Relative Humidity | 5 to 95 % |
| Storage Altitude | 0 to 50000 ft (0 to 15240 m) |
| Power Capacity | 17.3 kW |
|---|---|
| Input Frequency | 50/60 Hz |
| Load Capacity | 17300 VA |
| Cord Length | 6 ft (1.83 m) |
| Width | 4.37 in (11.1 cm) |
| Input Connection Type | IEC 60309 60A 3P+PE |
| RoHS | Compliant with Exemptions |
| Standards | IEC 62368-1 |
| WEEE | N/A |
| TakeBack | No |
| PDU Type | Switched |
| Line Rated Current | 48 A |
| Communication Port Protocol | SNMP, Redfish |
| Input Voltage | 208 V 3 phase |
| Ambient Air Temperature for Storage | -13 to 149 F (-25 to 65 C) |
| Operating Altitude | 0 to 10000 ft |
