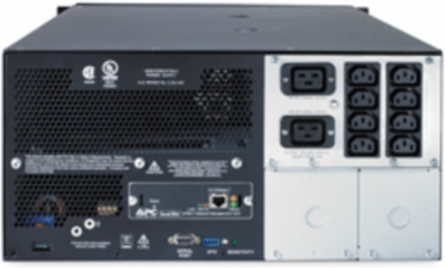

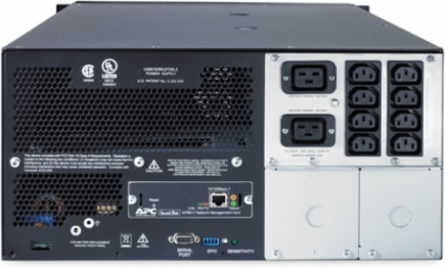

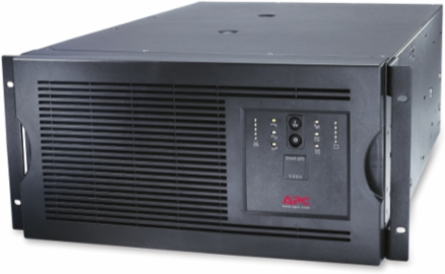

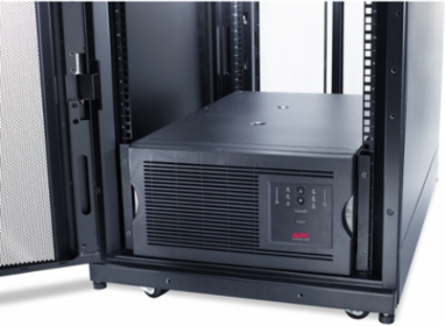

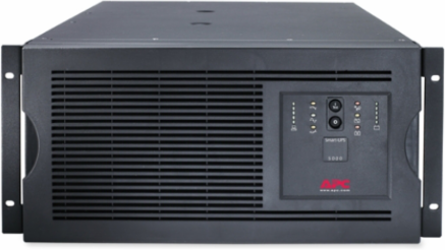

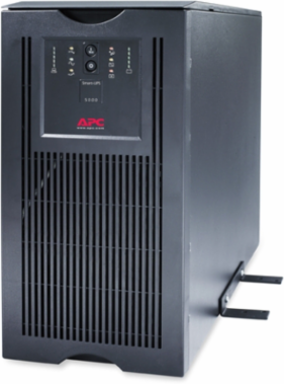

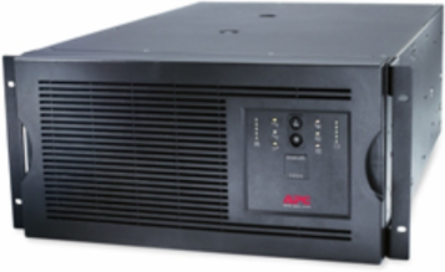

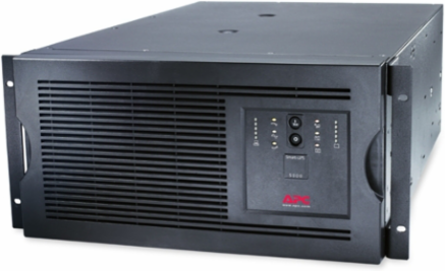

APC SUA5000RMI5U Smart-UPS 5000VA 230V Rackmount, 5U Height, Sine Wave Output, 14 Connections
APC SUA5000RMI5U Smart-UPS 5000VA 230V Rackmount, 5U Height, Sine Wave Output, 14 Connections
- MPN: SUA5000RMI5U
- UPC: 731304255321
- PPN: APC-SUA5000RMI5U
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Smart-UPS 5000VA 230V Rackmount, 5U Height, Sine Wave Output, 14 Connections
Features
- Adjustable voltage-transfer points — Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Audible alarms — Provides notification of changing utility power and UPS power conditions
- Automatic self-test — Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Boost and Trim Automatic Voltage Regulation (AVR) — Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Disconnected battery notification — Warns when a battery is not available to provide backup power.
- Hot-swappable batteries — Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Intelligent Card Slot — Customize UPS capabilities with management cards.
- Network manageable — Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Resettable circuit breakers — Enables a quick recovery from overload events.
- Safety-agency approved — The UPS is UL1778 Listed
- Serial connectivity — Provides management of the UPS via a serial port.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
- Output Power Capacity
- 5000 VA
- Waveform Type
- Sine Wave
- Topology
- Line interactive
- Height
- 8.74 in (22.2 cm)
- Depth
- 25.98 in (66.0 cm)
- Input Connection Type
- Hard wire 3-wire
- Interface Ports
- DB-9 RS-232, SmartSlot
- Approvals
- C-Tick, CE, GOST, GS Mark, VDE, UL1778 Listed
- Color
- Black
Nominal Output Voltage230 V
Input Voltage230 V
Rack Height5 U
Width19.02 in (48.3 cm)
Output Connections14
Mount PositionFront
Battery TypeVRLA
RoHSCompliant
