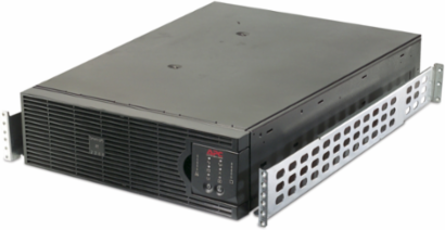

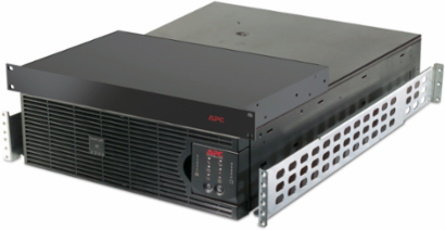

APC SURTD2200XLIM Smart-UPS RT 2200VA 230V Marine, Grit 0, Double Conversion Online, 3U Rack Height
- MPN: SURTD2200XLIM
- UPC: 731304286929
- PPN: APC-SURTD2200XLIM
CAD
$4104.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS RT 2200VA 230V Marine, Grit 0, Double Conversion Online, 3U Rack Height
Features
- Predictive failure notification. — Provides early-warning fault analysis ensuring proactive component replacement.
- Wide input voltage range — Designed for harsh electrical environments to save battery life.
- Double conversion on-line topology — Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
- Fast battery charging capability — Allows for reduced battery recharge time, prevents disturbances on the distribution system by correcting the power factor, protects the battery against damage caused by deep discharge and provides backfeed protection.
- Eliminates humming and heat generated when powering tube lights and fans — Eliminates humming and heat generated when powering tube lights and fans
- Microprocessor controlled, 3-stage regulated charging ensures the fastest recharge times without decreasing battery life. — Microprocessor controlled, 3-stage regulated charging ensures the fastest recharge times without decreasing battery life.
- LED Indicators — Provide easy-to-read status of the unit and utility power conditions.
- Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload. — Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.
- Enable management of your UPS by connecting it directly to the network. — Enable management of your UPS by connecting it directly to the network.
- Excellent footprint — Small UPS footprint provides maximum usage of valuable electrical room floorspace
- Advanced electrical features — Excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high power efficiency
- Intuitive monitoring — Step by step navigation and menu screens for critical system information and data. Information is easy to access and presented in a very intuitive way.
- Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions. — Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions.
- Serial connectivity — Provides management of the UPS via a serial port.
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Global safety approvals — UL60950, CSA60950, IEC60950, EN60950 safety approvals. Meets IEC 61000-4-5 Immunity To Surge, and GR-1089-CORE, Section 4, Lightning and AC Power Faults standards.
- Disconnected battery notification — Warns when a battery is not available to provide backup power.
- Automatic internal bypass — Supplies utility power to the connected loads in the event of a UPS power overload or fault.
- Scalable runtime — Allows additional run time to be quickly added as needed.
- Audible alarms — Provides notification of changing utility power and UPS power conditions
- Automatic restart of loads after UPS shutdown — Automatically starts up the connected equipment upon the return of utility power.
- Automatic self-test — Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Field-replaceable power distribution panel — Ensures compatibility with equipment that has different plug types.
- Front-access servicing — Simplifies installation and UPS maintenance while minimizing space requirements.
- Generator compatible — Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Hot-swappable batteries — Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Input power factor correction — Minimizes installation costs by enabling the use of smaller generators and cabling.
- Network manageable — Provides remote power management of the UPS over the network.
- Power conditioning — Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Programmable frequency — Ensures compatibility with different input frequencies.
- Safety-agency approved — Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
- User-replaceable batteries — Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Intelligent battery management — Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Frequency and voltage regulation — Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 2200 VA
- Input Voltage
- 230 V
- Input Frequency
- 50/60 Hz ±5 Hz auto-sensing
- Output Frequency
- 50/60 Hz ±3 Hz user adjustable
- Topology
- Double Conversion Online
- Rack Height
- 3U
- Width
- 5.12 in (130 mm)
- Weight
- 120.26 lb (54.55 kg)
- Typical Recharge Time
- 2.5 h
- Acoustic Level
- 55 dBA
- Operating Altitude
- 0-10000 ft
- Ambient Operating Temperature
- 32-131 °F (0-55 °C)
- IP Degree of Protection
- IP20
- Crest Factor
- 3:1
- Battery Replacement
- User replaceable, hot-swappable, predictive replace notification (APCRBC140)
- Input Connection Type
- BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P
- Cord Length
- 8.2 ft (2.5 m)
- RoHS
- Compliant with exemptions
- WEEE
- Must be disposed in EU per waste collection regulations
- Color
- Black
Power (Watts)1540 W
Input Voltage Range180-280 V
Output Voltage Options220 V, 230 V, 240 V
Waveform TypeSine wave
Surge Energy Rating555 J
Height17.01 in (432 mm)
Depth25.98 in (660 mm)
Battery TypeLead-Acid battery
Battery Life3-5 years
Heat Dissipation609 Btu/h
Storage Altitude0-50000 ft
Ambient Storage Temperature5-113 °F (-15-45 °C)
Relative Humidity0-95% non-condensing
Harmonic DistortionLess than 3%
MountingRack-mounted, front access

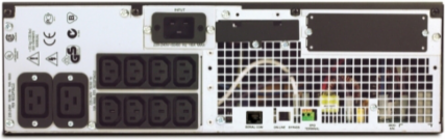

Output Connections8 IEC 60320 C13, 2 IEC Jumpers, 2 IEC 60320 C19
ApprovalsCE, DNV, KCC
ReachContains Substances of Very High Concern above threshold
California Proposition 65Prop 65 Warning: Contains lead compounds
Customs Number8504407018
