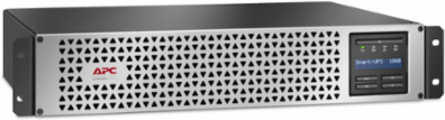

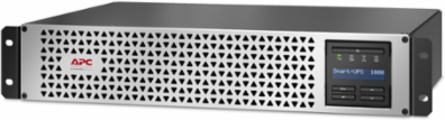

APC SMTL1000RM2UC Smart-UPS 1000VA Lithium-ion Rack/Tower 2U 120V 6x NEMA 5-15R Outlets
- MPN: SMTL1000RM2UC
- UPC: 731304341987
- PPN: APC-SMTL1000RM2UC
CAD
$3313.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS 1000VA Lithium-ion Rack/Tower 2U 120V 6x NEMA 5-15R Outlets
Features
- Lithium-ion battery — Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
- Short-depth rack compatibility — Compact design fits comfortably in short-depth rack applications.
- Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services. — Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Power Rating
- 1000 VA
- Input Voltage
- 120 V
- Number of Outlets
- 6 NEMA 5-15R
- Battery Type
- Li-Ion (Lithium Ion)
- Topology
- Line Interactive
- Input Frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Efficiency at Full Load
- 75-154 V adjustable, 82-144 V
- Battery Charge Power
- 79 W
- Harmonic Distortion
- < 5%
- Acoustic Level
- 41 dBA
- Operating Altitude
- 0-10000 ft
- Operating Temperature Range
- 32-104 °F (0-40 °C)
- Rack Units
- 2U
- Width
- 17.24 in (438 mm)
- Weight
- 36 lb (16.33 kg)
- Input Protection Type
- Circuit breaker
- Relative Humidity
- 0-95% non-condensing
- Country of Origin
- Philippines
- Color
- Black with silver front bezel
Output Power1000 VA
Output Voltage120 V
Typical Recharge Time3 h
Surge Energy Rating680 J
Waveform TypeSine wave
Output Frequency50/60 Hz +/- 3 Hz synchronised to mains
Battery Design Life8-10 years
Crest Factor3 : 1
Transfer Time6 ms typical, 10 ms maximum
Heat Dissipation70 Btu/h
Storage Altitude0-25000 ft (0-7620 m)
Storage Temperature Range5-113 °F (-15 to 45 °C)
Height3.39 in (86 mm)
Depth12.52 in (318 mm)
Input Connection TypeNEMA 5-15P
IP Degree of ProtectionIP20
Storage Relative Humidity0-95% non-condensing
ApprovalsNOM
