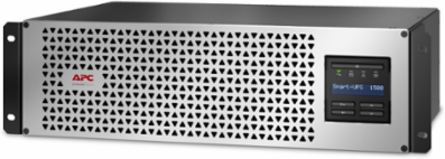

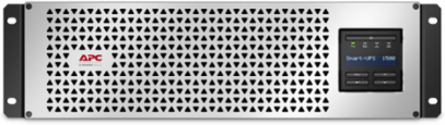

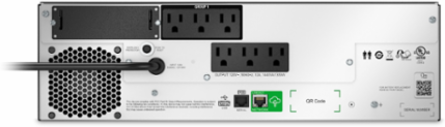

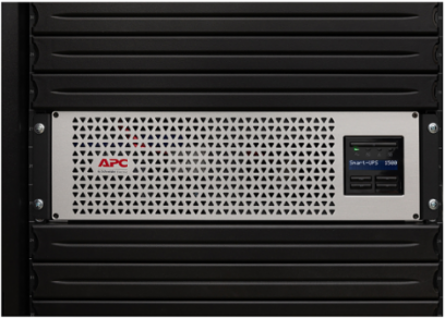

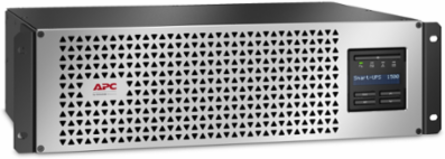

APC SMTL1500RM3UC Smart-UPS Line Interactive 1500 VA Lithium-ion Rackmount 3U 120V 6x NEMA 5-15R Outlets

  • MPN: SMTL1500RM3UC
  • UPC: 731304339632
  • PPN: APC-SMTL1500RM3UC

CAD

$4410.45

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive 3U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Features

  • Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
  • Compact design fits comfortably in short-depth rack applications.
  • Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
  • Reduces utility costs, generates less heat.
  • Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • Provides actual kilowatt hours of usage for energy conscious users.
  • Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • Simulates utility power to provide the highest degree of compatibility for active PFC power factor corrected servers and sensitive electronics.
  • Provides temporary battery power when the utility power is out.
  • Customize UPS capabilities with management cards.
  • Prolongs battery life by regulating the charge voltage according to battery temperature.
  • 1440VA/1350W line interactive pure sine wave 3U rackmount UPS
  • Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
  • Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS
  • Short depth UPS provides extra space for cable management
  • Cloud-based remote power monitoring via SmartConnect Ethernet Port
  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
  • Peace of mind with a 5-year warranty on UPS and battery

Documentation & Downloads

Specifications

Additional

Capacity1440 VA
Input Voltage120 V
Battery TypeLi-Ion (Lithium Ion)
Output Frequency50/60 Hz 3 Hz sync to mains
TopologyLine Interactive
Surge Energy Rating680 J
Input ConnectionNEMA 5-15P
Height5.16 in (131 mm)
Depth11.89 in (302 mm)
Rack Units3U
Country of OriginPhilippines
Storage Temperature5-113 F (-15-45 C)
Storage Altitude0-25000 ft
IP Degree of ProtectionIP20
RoHS ComplianceCompliant with Exemptions
Warranty5 year repair or replace
Output Power1440 VA
Output Voltage120 V
Input Frequency50/60 Hz 3 Hz auto-sensing
Transfer Time6 ms typical, 10 ms max
Waveform TypeSine wave
Number of Outlets6 NEMA 5-15R
Cable Length8 ft (2.44 m)
Width17.24 in (438 mm)
Weight42.99 lb (19.5 kg)
ColorBlack with silver front bezel
Operating Temperature32-104 F (0-40 C)
Operating Altitude0-10000 ft
Relative Humidity0-95% non-condensing
ApprovalsNOM
Mercury FreeYes
