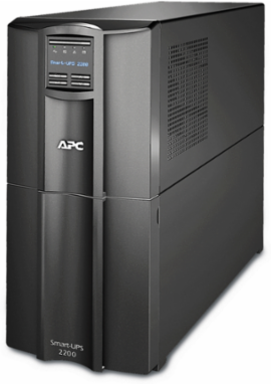

APC SMT2200CUS Smart-UPS Tower, 2200VA, Line Interactive, 120V, 8 NEMA 5-15R, 2 NEMA 5-20R, AVR
- MPN: SMT2200CUS
- UPC: 731304740551
- PPN: APC-SMT2200CUS
CAD
$2783.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS Tower, 2200VA, Line Interactive, 120V, 8 NEMA 5-15R, 2 NEMA 5-20R, AVR
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 1920 VA
- Input Voltage Range
- 75-154 V adjustable
- Output Voltage
- 120 V AC 1 phase
- Transfer Time
- 6 ms typical, 10 ms maximum
- Topology
- Line Interactive
- Battery Type
- Lead-Acid battery
- Cable Length
- 6 ft (1.83 m)
- Dimensions (H x W x D)
- 17.13 in x 7.76 in x 21.42 in
- Heat Dissipation
- 275 Btu/h
- Storage Altitude
- 0-50000 ft
- Ambient Temperature (Storage)
- 5-113 °F (-15-45 °C)
- Relative Humidity (Storage)
- 0-95 %
- RoHS
- Compliant with Exemptions
- Warranty
- 36 months repair or replace, 2 years battery
- Color
- Black
Input Voltage120 V AC 1 phase
Input Frequency50/60 Hz +/- 3 Hz
Output Connections8 NEMA 5-15R, 2 NEMA 5-20R
Waveform TypeSine wave
Surge Energy Rating530 J
Typical Recharge Time3 h
Weight112.24 lb (50.91 kg)
Acoustic Level45 dBA
Operating Altitude0-10000 ft
Ambient Temperature (Operating)32-104 °F (0-40 °C)
Relative Humidity (Operating)0-95 %
ComplianceTAA, cULus, ENERGY STAR V2.0
Communication PortsSmartConnect Ethernet, SmartSlot, RS-232
Country of OriginMexico
