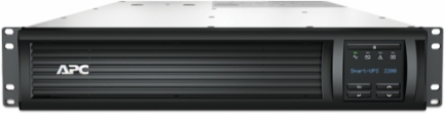

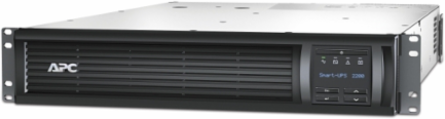

APC SMT2200RMI2UNC Smart-UPS 2200VA Line Interactive Rackmount 2U 230V, 12 Outlets, AVR, LCD
- MPN: SMT2200RMI2UNC
- UPC: 731304327691
- PPN: APC-SMT2200RMI2UNC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS 2200VA Line Interactive Rackmount 2U 230V, 12 Outlets, AVR, LCD
Features
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency — Reduces utility costs, generates less heat.
- Intelligent Card Slot — Customize UPS capabilities with management cards.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Preinstalled network management card — Provides for remote management and control of the UPS over a network out of the box.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Sequenced network shutdown and reboot — Customize network shutdown and reboot sequence of connected servers and UPSs.
- Single switched outlet group — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- StruxureWare Data Center Expert compatible — Enables centralized management via StruxureWare Data Center Expert.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 2200 VA / 1980 W
- Input Voltage
- 230 V (range 150 - 300 V)
- Waveform Type
- Sine wave
- Input Connection Type
- BS1363A British, IEC320 C20, Schuko CEE 7 / EU1-16P
- Replacement Battery
- APCRBC133
- Runtime Estimates at 500W Load
- 12 minutes
- Runtime Estimates at 1000W Load
- 15 minutes
- Runtime Estimates at 1600W Load
- 7 minutes
- Surge Energy Rating
- 375 J
- Emergency Power Off (EPO)
- Yes
- Width
- 48.0 cm (18.9 in)
- Weight
- 42.31 kg (96 lb)
- Rack Height
- 2U
- Topology
- Line interactive
- RoHS Compliance
- Compliant
- Warranty
- 3 years electronics, 2 years battery
Nominal Output Voltage230 V (configurable to 220 or 240 V)
Input Frequency50/60 Hz 3 Hz (auto sensing)
Output Connections12
Battery TypeMaintenance-free sealed lead-acid battery with suspended electrolyte; leak proof
Runtime Estimates at 200W Load27 minutes
Runtime Estimates at 700W Load24 minutes
Runtime Estimates at 1400W Load9 minutes
Runtime Estimates at Full Load5 minutes
Control PanelAlpha-numeric LCD display with LED status indicators
Height8.6 cm (3.39 in)
Depth68.3 cm (26.89 in)
Mount PositionFront
Product OrientationRack
Interface PortsRJ45 10/100 Base-T, RJ45 Serial, SmartSlot, USB
Regulatory ComplianceCE, EAC, GS Mark, IRAM, RCM, VDE, EN62040-1, EN62040-2
