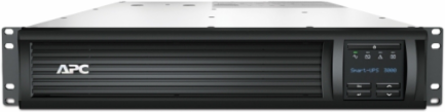

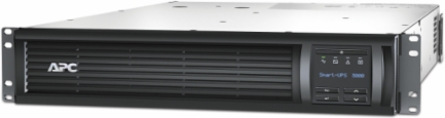

APC SMT3000RMI2UNC Smart-UPS 3000VA Rackmount 2U 230V Line Interactive with 12 Outlets, AVR, LCD
- MPN: SMT3000RMI2UNC
- UPC: 731304327707
- PPN: APC-SMT3000RMI2UNC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS 3000VA Rackmount 2U 230V Line Interactive with 12 Outlets, AVR, LCD
Features
- Adjustable voltage sensitivity — Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Adjustable voltage-transfer points — Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Audible alarms — Provides notification of changing utility power and UPS power conditions
- Automatic restart of loads after UPS shutdown — Automatically starts up the connected equipment upon the return of utility power.
- Automatic self-test — Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Boost and Trim Automatic Voltage Regulation (AVR) — Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Disconnected battery notification — Warns when a battery is not available to provide backup power.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Frequency and voltage regulation — Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency — Reduces utility costs, generates less heat.
- Hot-swappable batteries — Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Intelligent battery management — Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Intelligent Card Slot — Customize UPS capabilities with management cards.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- LED Indicators — Provide easy-to-read status of the unit and utility power conditions.
- Network manageable — Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
- Outlet group control — Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
- Predictive failure notification. — Provides early-warning fault analysis ensuring proactive component replacement.
- Predictive replace battery date — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Preinstalled network management card — Provides for remote management and control of the UPS over a network out of the box.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Safety-agency approved — The UPS is UL1778 Listed
- Sequenced network shutdown and reboot — Customize network shutdown and reboot sequence of connected servers and UPSs.
- Serial connectivity — Provides management of the UPS via a serial port.
- Single switched outlet group — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- StruxureWare Data Center Expert compatible — Enables centralized management via StruxureWare Data Center Expert.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
- USB connectivity — Provides management of the UPS via a USB port (not available on all models).
- User-replaceable batteries — Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Wide input voltage range — Designed for harsh electrical environments to save battery life.
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 2700 W / 3000 VA
- Output Frequency
- 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
- Output Connections
- 12 outlets including (8) IEC320 C13, (1) IEC320 C19
- Surge Energy Rating
- 320 J
- Battery Management
- Intelligent, temperature-compensated charging
- Input Connection Type
- BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
- Warranty
- 3 years electronics, 2 years battery
- Width
- 48.0 cm (18.9 in)
- Net Weight
- 44.28 kg (96 lb)
- Product Orientation
- Rack
- Topology
- Line interactive
- RoHS Compliance
- Compliant
Nominal Output Voltage230 V (configurable to 220 or 240 V)
Waveform TypeSine wave
Input Voltage230 V (range 150 - 300 V)
Voltage RegulationBoost and Trim Automatic Voltage Regulation (AVR)
Output WaveformPure sine wave on battery
Battery TypeMaintenance-free sealed lead-acid, leak proof
Height8.6 cm (3.39 in)
Depth68.3 cm (26.89 in)
Interface PortsRJ-45 10/100 Base-T, RJ-45 Serial, SmartSlot, USB
Rack Height2U
Mount PositionFront
Regulatory ApprovalsCE, EAC, GS Mark, IRAM, RCM, VDE, UL1778 Listed
