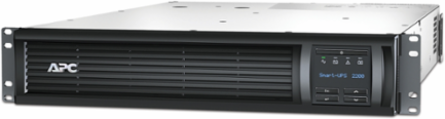

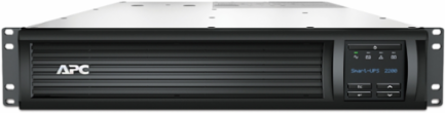

APC SMT2200RM2UNC Smart-UPS 2200VA Line Interactive Rackmount 2U 120V 6x NEMA 5-15R+2x NEMA 5-20R
- MPN: SMT2200RM2UNC
- UPC: 731304332763
- PPN: APC-SMT2200RM2UNC
CAD
$3507.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS 2200VA Line Interactive Rackmount 2U 120V 6x NEMA 5-15R+2x NEMA 5-20R
Features
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Provides for remote management and control of the UPS over a network out of the box. — Provides for remote management and control of the UPS over a network out of the box.
- Sequenced network shutdown and reboot — Customize network shutdown and reboot sequence of connected servers and UPSs.
- StruxureWare Data Center Expert Compatibility — Discover and monitor PowerChute Agents via SNMP v1 or v3. Integrate SNMP Traps for timely notifications of UPS critical events.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 1920 VA
- Topology
- Line Interactive
- Output Connections
- 6 NEMA 5-15R, 2 NEMA 5-20R
- Typical Recharge Time
- 3 h
- Weight
- 93.28 lb (42.31 kg)
- Depth
- 26.89 in (683 mm)
- Input Connection Type
- NEMA 5-20P
- Color
- Black
- Replacement Battery
- RBC43
- CSA Approved
- Yes
Voltage120 V
Waveform TypeSine wave
Surge Energy Rating530 J
Battery TypeLead-Acid battery
Width17.01 in (432 mm)
Height3.39 in (86 mm)
Rack Units2U
Country of OriginPhilippines
RoHS ComplianceCompliant with Exemptions
