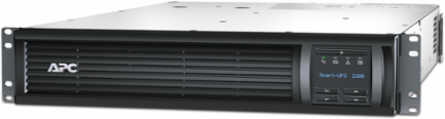

APC SMT2200RM2UCUS Smart-UPS Line Interactive 2200VA 2U Rackmount 120V 6 NEMA 5-15R+2 NEMA 5-20R Outlets
- MPN: SMT2200RM2UCUS
- UPC: 731304740506
- PPN: APC-SMT2200RM2UCUS
CAD
$3111.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS Line Interactive 2200VA 2U Rackmount 120V 6 NEMA 5-15R+2 NEMA 5-20R Outlets
Documentation & Downloads
Specifications
Additional
| Power Capacity | 1920 VA |
|---|---|
| Output Connections | 6 NEMA 5-15R, 2 NEMA 5-20R |
| Battery Type | Lead-Acid battery |
| Surge Energy Rating | 530 J |
| Topology | Line Interactive |
| Power Rating | 1920 W |
| Harmonic Distortion | < 5% |
| Width | 17.01 in (432 mm) |
| Weight | 93.28 lb (42.31 kg) |
| Cable Length | 8 ft (2.44 m) |
| Storage Temperature | 5-113 F (-15-45 C) |
| Storage Altitude | 0-50000 ft |
| Storage Relative Humidity | 0-95 % |
| Output Frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Battery Charge Power | 179 W |
| Heat Dissipation | 215 Btu/h |
| Country of Origin | Mexico |
| Replacement Battery | RBC43, RBC43J-NM |
| Voltage | 120 V AC 1 phase |
|---|---|
| Input Connection Type | NEMA 5-20P |
| Typical Recharge Time | 3 h |
| Transfer Time | 6-10 ms |
| Waveform Type | Sine wave |
| Max Configurable Power | 2200 VA / 1980 W |
| Height | 3.39 in (86 mm) |
| Depth | 26.89 in (683 mm) |
| Rack Units | 2U |
| Operating Temperature | 32-104 F (0-40 C) |
| Operating Altitude | 0-10000 ft |
| Relative Humidity | 0-95 % |
| Input Frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Battery Life | 3-5 years |
| Acoustic Level | 55 dBA |
| Compliance | cULus, ENERGY STAR V2.0, TAA, RoHS Compliant |
| Mount Position | front |
