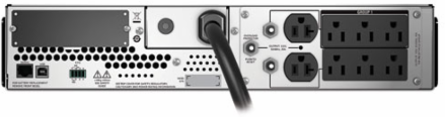

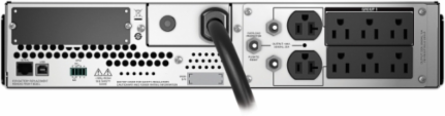

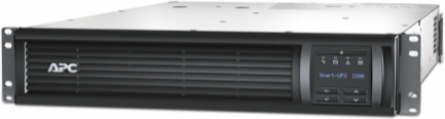

APC SMT2200RM2U Smart-UPS 2200VA Line Interactive Rackmount 2U 120V Sine Wave Output, 8 Outlets

MPN: SMT2200RM2U
UPC: 731304279532
PPN: APC-SMT2200RM2U

$3171.64

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1920VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6 NEMA 5-15R and 2 NEMA 5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Features

StruxureWare Data Center Expert compatible — Enables centralized management via StruxureWare Data Center Expert.
Reduces utility costs, generates less heat.
Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non — critical load shedding.-Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Sequenced network shutdown and reboot — Customize network shutdown and reboot sequence of connected servers and UPSs.
Cold — start capable-Provides temporary battery power when the utility power is out.
SmartSlot — Customize UPS capabilities with management cards.
Temperature — compensated battery charging-Prolongs battery life by regulating the charge voltage according to battery temperature.
1920VA/1920W line interactive pure sine wave 2U rackmount UPS
Ideal for servers, storage, network closets, business VoIP and retail POS
Automatic Voltage Regulation helps correct utility voltage
Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown

Documentation & Downloads

Specifications

Additional

Output Power Capacity	1920 VA
Output Waveform	Pure Sine Wave
Typical Recharge Time	3 hours
Rack Height	2U
Height	3.39 in (8.6 cm)
Cord Length	8.01 ft (2.4 m)
Output Connections	8
Battery Type	Lead-acid
Color	Black
Warranty	3 years repair/replace (excl. battery), 2 years battery

Voltage	120V
Surge Energy Rating	530 J
Topology	Line interactive
Width	18.9 in
Depth	26.89 in (68.3 cm)
Input Connection Type	NEMA 5-20P
Mount Position	Front
Interface Ports	RJ-45 Serial, Smart-Slot, USB
Approvals	CSA, RoHS Compliant
