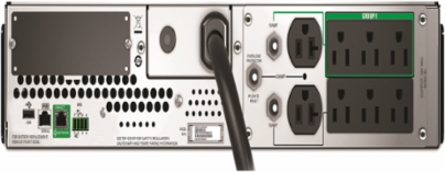

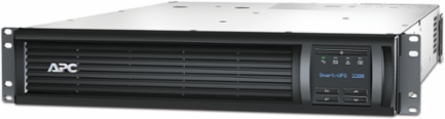

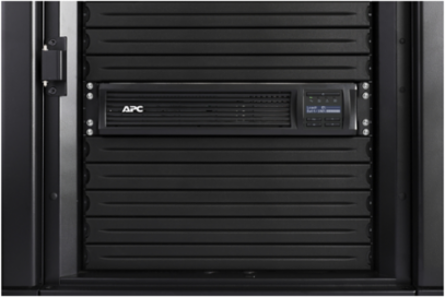

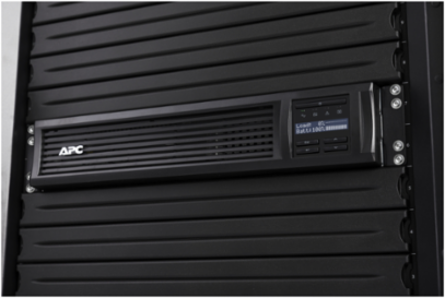

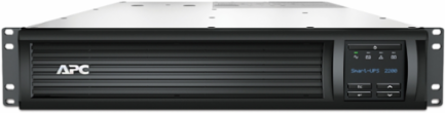

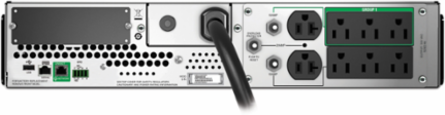

APC SMT2200RM2UC Smart-UPS 2200VA Rackmount 2U, 120V, 8 Outlets, AVR, LCD, Pure Sine Wave
- MPN: SMT2200RM2UC
- UPC: 731304331056
- PPN: APC-SMT2200RM2UC
CAD
$3171.64
/ EA
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Features
- StruxureWare Data Center Expert compatible — Enables centralized management via StruxureWare Data Center Expert.
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Sequenced network shutdown and reboot — Customize network shutdown and reboot sequence of connected servers and UPSs.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
| Power Capacity | 2200 VA, 1980 W |
|---|---|
| Output Voltage | 120 V, 110 V to 125 V range |
| Topology | Line Interactive |
| Transfer Time | 6 ms typical, 10 ms maximum |
| Operating Temperature Range | 32 104 F (0 40 C) |
| Operating Altitude | 0 10,000 ft |
| Relative Humidity | 0 95% |
| Dimensions (H x W x D) | 3.39 in x 17.01 in x 26.89 in (86 mm x 432 mm x 683 mm) |
| Input Connection Type | NEMA 5-20P |
| Battery Life | 3 5 years |
| Battery Replaceability | User replaceable |
| Communication Port | SmartConnect Ethernet port, SmartSlot |
| Certifications | cULus, ENERGY STAR UPS V2.0 |
| Mercury Free | Yes |
| Country of Origin | Vietnam |
| Input Voltage | 120 V, 75 154 V adjustable |
|---|---|
| Output Waveform | Pure sine wave |
| Number of Outlets | 8 outlets (6 NEMA 5-15R, 2 NEMA 5-20R) |
| Surge Energy Rating | 530 J |
| Storage Temperature Range | 5 113 F (-15 45 C) |
| Storage Altitude | 0 50,000 ft |
| Rack Units | 2U |
| Weight | 93.28 lb (42.31 kg) |
| Battery Type | Lead-Acid battery |
| Typical Recharge Time | 3 hours |
| Replacement Battery | RBC43 |
| Input Frequency | 50/60 Hz 3 Hz auto-sensing |
| RoHS | Compliant with Exemptions |
| Color | Black |
| Cord Length | 8 ft (2.44 m) |
