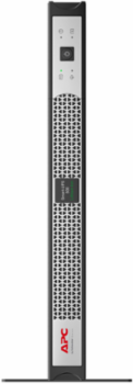

APC SCL500RM1UC Smart-UPS 500VA Line Interactive Rackmount 1U Lithium-ion 120V 4x NEMA 5-15R
- MPN: SCL500RM1UC
- UPC: 731304344551
- PPN: APC-SCL500RM1UC
CAD
$902.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS 500VA Line Interactive Rackmount 1U Lithium-ion 120V 4x NEMA 5-15R
Features
- Lithium-ion battery — Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
- Short-depth rack compatibility — Compact design fits comfortably in short-depth rack applications.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 500 VA |
|---|---|
| Voltage | 120 V |
| Surge Energy Rating | 680 J |
| Topology | Line Interactive |
| Waveform Type | Sine wave |
| Height | 1.73 in (44 mm) |
| Depth | 9.13 in (232 mm) |
| Input Connection Type | NEMA 5-15P |
| Battery Type | Li-Ion (Lithium Ion) |
| Efficiency at Full Load | 92-139% |
| Heat Dissipation | 41.61 Btu/h |
| Storage Temperature Range | 5 to 113 F |
| Storage Altitude | 0 to 25,000 ft |
| Relative Humidity Storage | 0 to 95% non-condensing |
| IP Degree of Protection | IP20 |
| RoHS Compliance | Compliant with Exemptions |
| Country of Origin | Philippines |
| Output Power | 400 W |
|---|---|
| Frequency | 50/60 Hz 3 Hz |
| Transfer Time | 6 ms typical, 10 ms max |
| Harmonic Distortion | < 5% |
| Rack Height | 1U |
| Width | 17.01 in (432 mm) |
| Weight | 9.22 lb (4.18 kg) |
| Output Connections | 4 NEMA 5-15R |
| Input Protection Type | Circuit breaker |
| Acoustic Level | 45 dBA |
| Operating Temperature Range | 32 to 104 F |
| Operating Altitude | 0 to 10,000 ft |
| Relative Humidity Operating | 0 to 95% non-condensing |
| Material Color | Black with silver front bezel |
| Approvals | cULus, NOM |
| Mercury Free | Yes |
