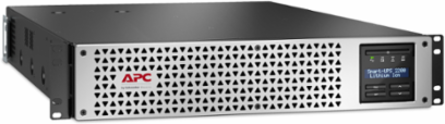

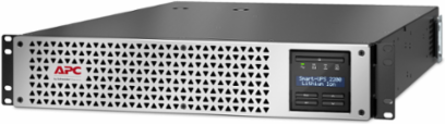

APC SMTL2K2RM2UCLNC Smart-UPS 2200VA Line Interactive Rackmount 2U 120V Lithium-ion 70.33 lb
- MPN: SMTL2K2RM2UCLNC
- UPC: 731304450757
- PPN: APC-SMTL2K2RM2UCLNC
Quote Required
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Features
- 1920VA/1920W line interactive pure sine wave 2U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- 1-Year Secure Network Management Card subscription included
- Preinstalled Network Management Card for network-based UPS monitoring & management
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
- Peace of mind with a 5-year warranty on UPS and battery

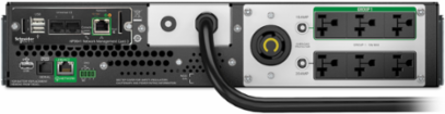

- 1x NEMA L5-20R in addition to 6x NEMA 5-20R
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 1920 VA |
|---|---|
| Input Voltage | 110 V, 120 V, 125 V |
| Topology | Line Interactive |
| Waveform Type | Sine wave |
| Acoustic Level | 55 dB |
| Operating Altitude | 0-10000 ft |
| Operating Temperature | 32-104 F (0-40 C) |
| Relative Humidity | 0-95% non-condensing |
| Typical Recharge Time | 2 h |
| Rack Height | 2U |
| Weight | 70.3 lb (31.9 kg) |
| Color | Black with silver front bezel |
| Interface Port | SmartConnect Ethernet port |
| Country of Origin | Philippines |
| Warranty | 5 year repair or replace |
| Max Configurable Power | 1980 W, 2200 VA |
|---|---|
| Output Voltage | 110 V, 120 V, 125 V |
| Number of Outlets | 1 NEMA L5-20R, 6 NEMA 5-20R |
| Surge Energy Rating | 530 J |
| Heat Dissipation | 215 Btu/h |
| Storage Altitude | 0-25000 ft |
| Storage Temperature | 5-113 F (-15-45 C) |
| Battery Type | Lithium Ion (Li-Ion) |
| Input Connection Type | NEMA L5-20P |
| Dimensions (H x W x D) | 3.39 in x 17.01 in x 26.89 in (8.6 cm x 43.2 cm x 68.3 cm) |
| Cord Length | 8 ft (2.44 m) |
| Replacement Battery | APCRBC174-LI |
| Compliance | cULus, ENERGY STAR V2.0 (USA), RoHS Compliant with Exemptions, Mercury Free, Reach Free of SVHC |
| IP Rating | IP20 |
