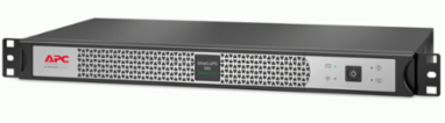

APC SCL500RMI1UC Smart-UPS Line Interactive 500VA Lithium-Ion 1U Rackmount 4x IEC C13 230V
- MPN: SCL500RMI1UC
- UPC: 731304402558
- PPN: APC-SCL500RMI1UC
CAD
$1089.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS Line Interactive 500VA Lithium-Ion 1U Rackmount 4x IEC C13 230V
Features
- Lithium-ion battery — Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
- Short-depth rack compatibility — Compact design fits comfortably in short-depth rack applications.
- Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services. — Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
- SmartConnect software for remote power monitoring feature availability varies by terms of use — SmartConnect Ethernet port for cloud monitoring feature availability varies by terms of use
- SmartConnect Ethernet port for cloud monitoring feature availability varies by terms of use — Start-up is fast and efficient, with easy-to-install, plug-in components. Features including low-maintenance joints and integrated couplers reduce the risk of installation error, saving installation and maintenance time and cost.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
| Output Power | 500 VA |
|---|---|
| Output Voltage | 230 V |
| Topology | Line Interactive |
| Battery Type | Li-Ion (Lithium Ion) |
| Number of Outlets | 4 IEC 60320 C13 |
| Height | 1.73 in (44 mm) |
| Depth | 9.13 in (232 mm) |
| Relative Humidity | 0 to 95% non-condensing |
| Storage Temperature Range | 5 to 113 6F (-15 to 45 6C) |
| Storage Altitude | 0 to 25,000 ft (0 to 7620 m) |
| Approvals | C-tick, CE, EAC, RCM, UK PSTI |
| Mercury Free | Yes |
| Country of Origin | Philippines |
| Input Voltage | 230 V |
|---|---|
| Rack Height | 1U |
| Waveform Type | Sine wave |
| Surge Energy Rating | 510 J |
| Input Connection Type | IEC 60320 C14 |
| Width | 17.01 in (432 mm) |
| Weight | 8.95 lb (4.06 kg) |
| Operating Temperature Range | 32 to 104 6F (0 to 40 6C) |
| Operating Altitude | 0 to 10,000 ft |
| Color | Black with silver front bezel |
| RoHS | Compliant with Exemptions |
| IP Rating | IP20 |
