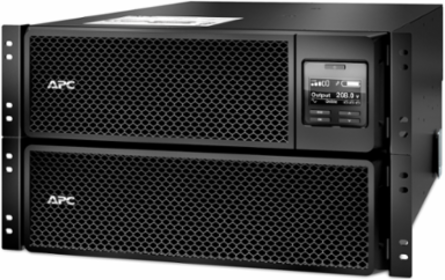

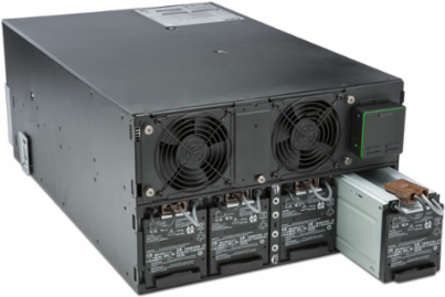

APC SRT10KRMXLT-A APC Smart-UPS On-Line, 10kVA/10kW, Rackmount 6U, 208V, 4x L6-20R+2x L6-30R NEMA outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit [TAA] (SRT10KRMXLT-A)
- MPN: SRT10KRMXLT-A
- UPC: 731304772217
- PPN: APC-SRT10KRMXLT-A
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line 6U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 2x NEMA L6-30R and 4x NEMA L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Features
- 10kVA/10kW online double-conversion (pure sine wave output) UPS in a 6U rackmount form factor
- Ideal for protecting critical servers, storage, networking equipment, medical labs, and light industrial applications.
- Includes a Network Management Card for remote monitoring and control.
- SmartSlot allows for additional communication options.
- Extended runtime capability not currently available for this Made in America UPS.
- Includes rail kit for easy rack mounting.
- 1-Year Secure Network Management Card subscription included.
Documentation & Downloads
Specifications
Conformance
| Rohs | Compliant By Exemption |
|---|---|
| Reach Compliance Date | 2025-12-10 |
| Reach | Reference contains Substances of Very High Concern above the threshold |
|---|---|
| Removable Battery | NO |
Battery
| ReplacementBattery | APCRBC140 |
|---|---|
| BatteryType | Lead-Acid battery |
| TypicalRechargeTime | 1.5 h |
|---|
Sustainability
| TakeBack | Yes |
|---|---|
| Recycled metal content in percentage | 0 % |
| Packaging without single use plastic | No |
| Carbon Footprint | 13742.6322345456 |
|---|---|
| Packaging with recycled cardboard | No |
| Product contributes saved avoided emissions | No |
Weight, Height, Width, Depth
| Height | 10.35 in (263 mm) |
|---|---|
| Depth | 28.15 in (715 mm) |
| Width | 17.01 in (432 mm) |
|---|---|
| Weight | 245.48 lb(US) (111.58 kg) |
Physical
| ProductOrientation | no preference |
|---|---|
| Color | Black |
| MountPosition | front |
| RackHeight | 6U |
|---|---|
| SurgeEnergyRating | 480 J |
Output
| OutputPowerCapacity | 10000 VA |
|---|---|
| NominalOutputVoltage | 208 V AC 1 phase |
| Waveformtype | Sine wave |

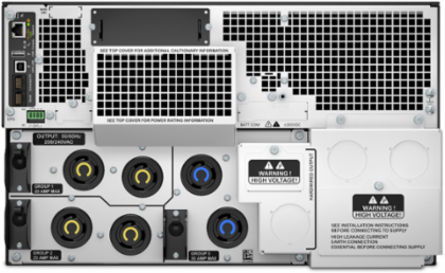

| OutputConnections | 2 NEMAL6-30R, 4 NEMAL6-20R, Hard Wire 3-wire (2PH + G) for 1 zone(s) |
|---|---|
| Topology | On-Line |
Warranty
| Warranty | UPS: 36 month(s), Battery: 24 month(s) |
|---|
