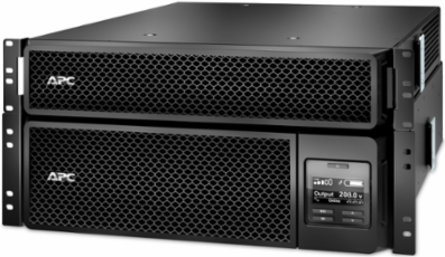

APC SRT5KRMXLT-5KTF-A APC Smart-UPS On-Line, 5kVA, Rackmount 5U, 208V, 12 5-20R+2 L6-20R+2 L6-30R NEMA, Network Card+SmartSlot, W/ rail kit, W/ transformer 208V to 120V
- MPN: SRT5KRMXLT-5KTF-A
- UPC: 731304772170
- PPN: APC-SRT5KRMXLT-5KTF-A
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APC Smart-UPS On-Line, 5kVA, Rackmount 5U, 208V, 12 5-20R+2 L6-20R+2 L6-30R NEMA, Network Card+SmartSlot, W/ rail kit, W/ transformer 208V to 120V
Documentation & Downloads
Specifications
Conformance
- Approvals
- ENERGY STAR V2.0 (USA), BAA compliance
ComplianceTAA Compliant, BAA Compliant via COTS
Battery
- ReplacementBattery
- APCRBC140
- BatteryType
- Lead-Acid battery
TypicalRechargeTime1.5 h
Sustainability
- Rohs
- Compliant By Exemption
- TakeBack
- Yes
- Reach Compliance Date
- 2025/12/10 00:00:00
- Packaging without single use plastic
- No
- Sustainable packaging
- No
ReachReference contains Substances of Very High Concern above the threshold
Carbon Footprint683.3076671443
Packaging with recycled cardboardNo
Removable batteryNo
Weight, Height, Width, Depth
- Weight
- 217.99 lb(US) (98.88 kg)
- Width
- 17.01 in (432 mm) in
Height8.58 in (218 mm) in
Depth28.31 in (719 mm) in
Logistical informations
- Customs number
- 8504407018
Physical
- ProductOrientation
- no preference
- Color
- Black
- MountPosition
- front, horizontal
RackHeight5U
SurgeEnergyRating480 J
Input
- CordLength
- 10.01 ft (3.05 m)
- InputVoltage
- 208 V AC 1 phase
InputConnectionTypeNEMA L6-30P
Output
- OutputPowerCapacity
- 5000 VA
- NominalOutputVoltage
- 208 V AC 1 phase
- Waveformtype
- Sine wave

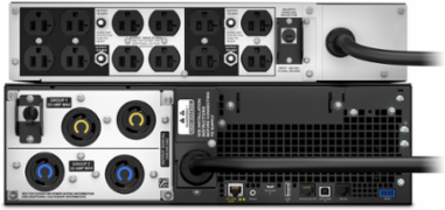

OutputConnections12 NEMA5-20R, 2 NEMAL6-20R, 2 NEMAL6-30R
TopologyOn-Line
Warranty
- Warranty
- Battery: 24 month(s), UPS: 36 month(s)
