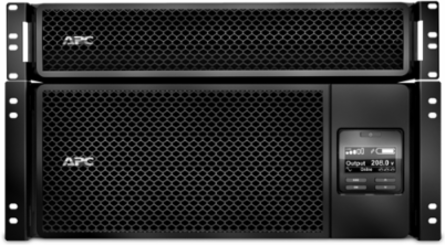

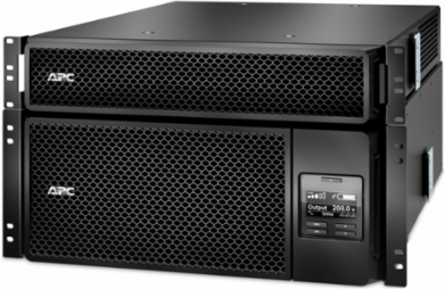

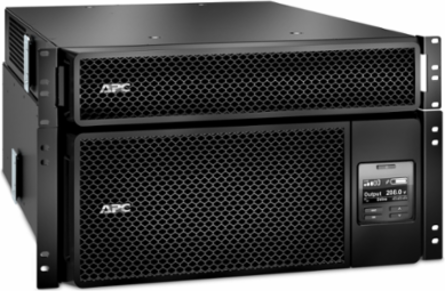

APC SRT6KRMXLT-5KTF Smart-UPS On-Line 6000VA 6kW Rackmount 6U 208V, 12x NEMA Connections, Sine Wave
- MPN: SRT6KRMXLT-5KTF
- UPC: 731304732945
- PPN: APC-SRT6KRMXLT-5KTF
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS On-Line 6000VA 6kW Rackmount 6U 208V, 12x NEMA Connections, Sine Wave
Features

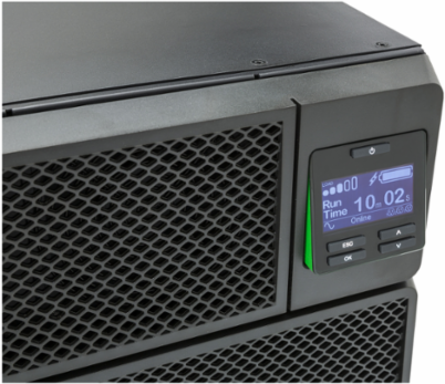

- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
- 10/100 BaseT Connection — Connect the device to a network using a 10 or 100 BaseT connection
- Hard Wire Input — UPS requires a hard wire input in order to deliver maximum output wattage to protected equipment
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 6000 VA, 6000 W |
|---|---|
| Nominal Output Voltage | 120 V |
| Topology | Double Conversion Online |
| Surge Energy Rating | 480 J |
| Rack Height | 6U |
| Weight | 230.01 lb (104.33 kg) |
| Typical Recharge Time | 1.5 h |
| Approvals | ENERGY STAR V2.0 (USA), FCC part 15 class A, UL 1778 |
| California Proposition 65 | Prop 65 Compliant |
| Warranty | 3 years repair or replace (excluding battery), 2 years battery |
| Input Voltage | 208 V |
|---|---|

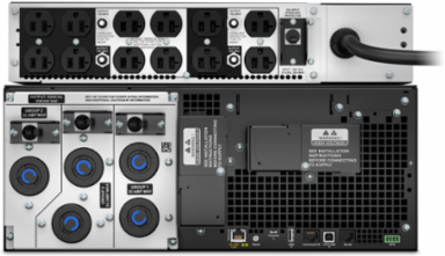

| Output Connections | Hard Wire 3-wire (2PH + G), 12 NEMA 5-20R, 2 NEMA L6-20R, 2 NEMA L6-30R |
| Waveform Type | Sine wave |
| Mount Position | front, horizontal |
| Dimensions (HxWxD) | 10.35 in x 17.01 in x 28.31 in (263 mm x 432 mm x 719 mm) |
| Battery Type | Lead-Acid battery |
| Color | Black |
| RoHS | Compliant with Exemptions |
| Replacement Battery | APCRBC140 |
