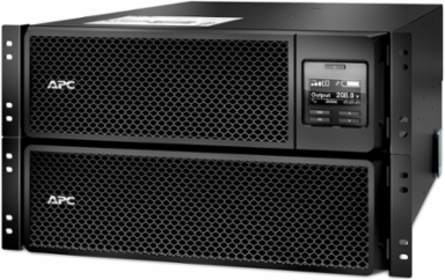

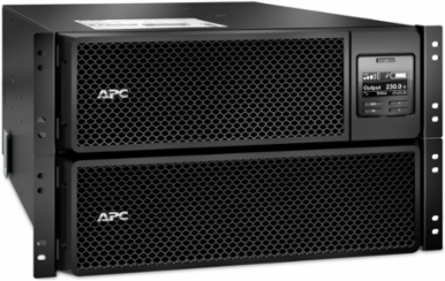

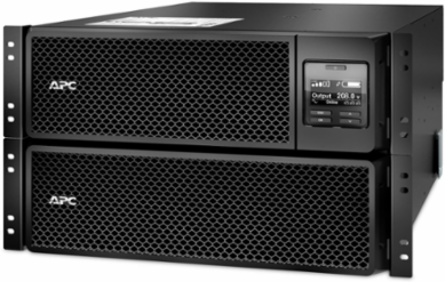

APC SRT10KRMXLTUS Smart-UPS On-Line 10kVA, Rackmount 6U, 208V, 4x L6-20R, 2x L6-30R, 245.99 lb
- MPN: SRT10KRMXLTUS
- UPC: 731304740834
- PPN: APC-SRT10KRMXLTUS
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

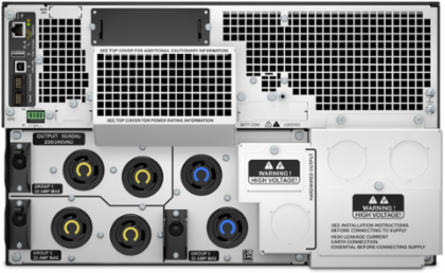

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line 6U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 2x NEMA L6-30R and 4x NEMA L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The Smart-UPS is compliant with the Trade Agreements Act (TAA) requirements.
Features
- 10kVA/10kW double-conversion on-line pure sine wave 6U rackmount UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit included)
- Delivers clean power with zero transfer time for critical or sensitive devices
- Add up to 10 external battery packs (SRT192RMBP2) for extended runtime
- Embedded Network Management Card for network-based UPS monitoring & management
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
- SmartSlot for additional communication options
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 10,000 VA |
|---|---|
| Nominal Output Voltage | 208 V |
| Typical Recharge Time | 1.5 h |
| Waveform Type | Sine wave |
| Dimensions | 10.35 in H x 17.01 in W x 28.15 in D |
| Color | Black |
| RoHS | Compliant with Exemptions |
| Topology | Double Conversion Online |
| Mount Position | front |
| Input Voltage | 208 V |
|---|---|
| Battery Type | Lead-Acid battery |
| Surge Energy Rating | 480 J |
| Rack Height | 6U |
| Weight | 245.99 lb (111.58 kg) |
| Compliance | TAA, ENERGY STAR V2.0 (USA) |
| Country of Origin | Mexico |
| Replacement Battery | APCRBC140 |
