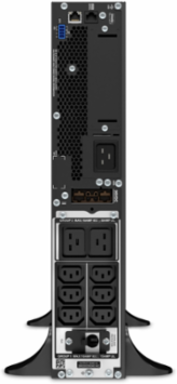

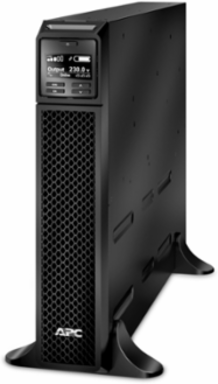

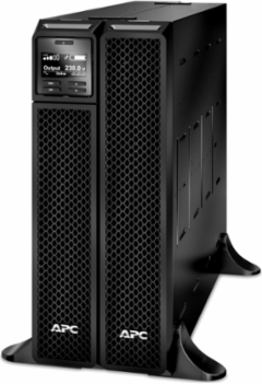

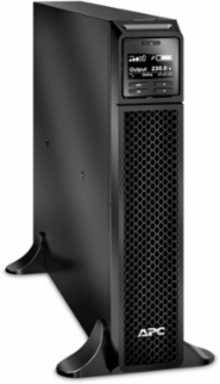

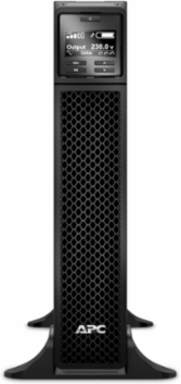

APC SRT3000XLW-IEC Smart-UPS On-Line 3000 VA Tower 208V/230V, 6x C13, 2x C19 Outlets, Black
- MPN: SRT3000XLW-IEC
- UPC: 731304320081
- PPN: APC-SRT3000XLW-IEC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 320 C13 and 2x IEC 320 C19 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately.
Features
- Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- 3kVA/2.7kW double-conversion on-line pure sine wave tower UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit SRTRK4 or SRTRK3 sold separately)
- Delivers clean power with zero transfer time for critical or sensitive devices
- Add up to 10 external battery packs (SRT96RMBP) for extended runtime
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 3000 VA / 2700 W |
|---|---|
| Output Voltage | 208 V, 230 V |
| Battery Type | Lead-Acid battery |
| Surge Energy Rating | 340 J |
| Output Connections | 6 IEC 60320 C13, 2 IEC Jumpers, 2 IEC 60320 C19 |
| Height | 17.01 in (432 mm) |
| Depth | 25.00 in (635 mm) |
| Mounting Position | front, vertical |
| Approvals | CE, EAC, ENERGY STAR V2.0 (USA), RCM, VDE, UK PSTI |
| Mercury Free | Yes |
| Reach | Contains Substances of Very High Concern |
| Product Orientation | No preference |
| Input Voltage | 208 V, 230 V |
|---|---|
| Waveform Type | Sine wave |
| Typical Recharge Time | 3 h |
| Input Connection Type | BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P |
| Topology | Double Conversion Online |
| Width | 3.35 in (85 mm) |
| Weight | 69.00 lb (31.3 kg) |
| Color | Black |
| RoHS | Compliant with Exemptions |
| WEEE | EU market specific disposal |
| Replacement Battery | APCRBC152 |
