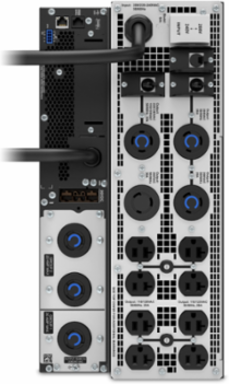

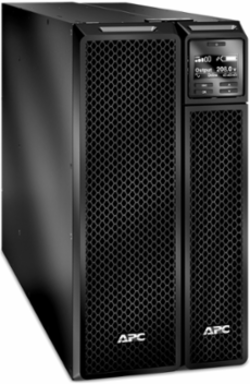

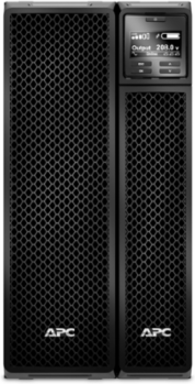

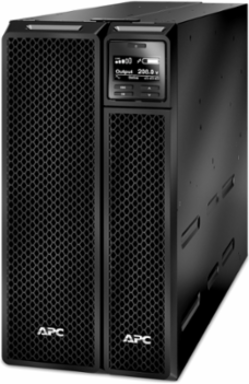

APC SRT3000XLT-5KTF Smart-UPS On-Line 3000 VA, Tower, 208V, 8x 5-20R, 4x L6-20R, 1x L6-30R, 1x L14-30R
- MPN: SRT3000XLT-5KTF
- UPC: 731304634645
- PPN: APC-SRT3000XLT-5KTF
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS On-Line 3000 VA, Tower, 208V, 8x 5-20R, 4x L6-20R, 1x L6-30R, 1x L14-30R
Features
- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
- ECO Mode — Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 3000 VA
- Input Voltage
- 208 V, 240 V
- Input Connection Type
- NEMA L6-20P
- Topology
- Double Conversion Online
- Battery Type
- Lead-Acid battery
- Typical Recharge Time
- 3 h
- Height
- 17.01 in (432 mm)
- Depth
- 25.00 in (635 mm)
- Mounting Mode
- Rack-mounted with kit, front vertical
- Bypass Type
- Internal Bypass (Automatic and Manual)
- Harmonic Distortion
- Less than 2%
- Acoustic Level
- 55 dBA
- Operating Altitude
- 0 to 10,000 ft
- Ambient Air Temperature for Storage
- 5 to 113 °F (-15 to 45 °C)
- Ingress Protection Rating
- IP20
- Battery Modules Included
- 1
- Energy Efficiency
- ENERGY STAR V2.0
- Color
- Black
Rated Power2700 W
Output Voltage120 V, 208 V
Output Connection Type8 NEMA 5-20R, 4 NEMA L6-20R, 1 NEMA L6-30R, 1 NEMA L14-30R
Cable Length10 ft (3.05 m)
Battery Voltage96 V
Battery Life3 to 5 years
Width6.69 in (170 mm)
Weight194.01 lb (88 kg)
Operating Frequency40 - 70 Hz auto-sensing
Crest Factor3:1
Output Frequency50/60 Hz ± 3 Hz sync to mains
Heat Dissipation773 Btu/h
Ambient Air Temperature for Operation32 to 104 °F (0 to 40 °C)
Storage Altitude0 to 50,000 ft (0 to 15,240 m)
Relative Humidity0 to 95% non-condensing
Extendable Run TimeYes, 1 module
ComplianceENERGY STAR V2.0 (USA), RoHS Compliant with Exemptions, Mercury Free, Prop 65 Compliant
Replacement BatteryAPCRBC152
