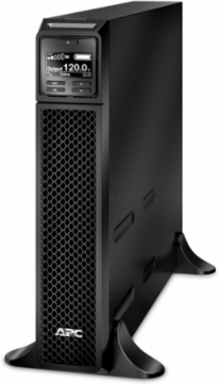

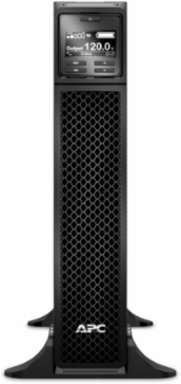

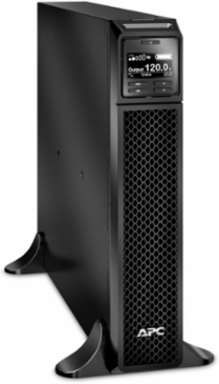

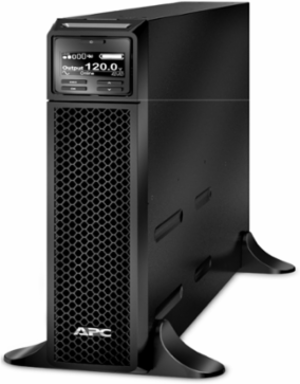

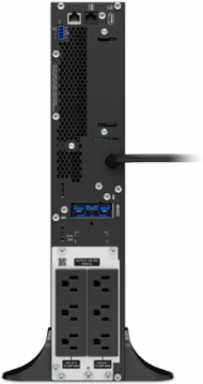

APC SRT1500XLA Smart-UPS On-Line 1500VA Tower 120V 6 NEMA 5-15R Outlets Sine Wave
- MPN: SRT1500XLA
- UPC: 731304330097
- PPN: APC-SRT1500XLA
CAD
$2858.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS On-Line 1500VA Tower 120V 6 NEMA 5-15R Outlets Sine Wave
Features
- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
- ECO Mode — Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 1500 VA
- Voltage
- 120 V
- Input Connection Type
- NEMA 5-15P
- Topology
- Double Conversion Online
- Cord Length
- 6 ft (1.83 m)
- Typical Recharge Time
- 3 h
- Width
- 3.35 in (85 mm)
- Weight
- 48.50 lb (22 kg)
- Product Orientation
- No preference
- Acoustic Level
- 50 dBA
- Operating Altitude
- 0 to 10000 ft
- Operating Temperature Range
- 32 to 104 °F
- Relative Humidity
- 0 to 95% non-condensing
- Output Frequency
- 50/60 Hz ±3 Hz
- Bypass Type
- Built-in Bypass
- Approvals
- ENERGY STAR V2.0 (USA)
- REACH
- Contains SVHC above threshold
- California Proposition 65
- Contains lead - Prop 65 Warning
- IP Degree of Protection
- IP20
Power Rating1350 W
Waveform TypeSine wave
Output Connections6 NEMA 5-15R
Surge Energy Rating432 J
Battery TypeLead-Acid battery
Height17.01 in (432 mm)
Depth20.00 in (508 mm)
Mount PositionVertical
Replacement BatteryAPCRBC155
Heat Dissipation463 Btu/h
Storage Altitude0 to 50000 ft
Storage Temperature Range-4 to 122 °F
Input Frequency40 to 70 Hz auto-sensing
Harmonic Distortion<2%
Crest Factor3:1
RoHSCompliant with Exemptions
Mercury FreeYes
Warranty36 months
ColorBlack
