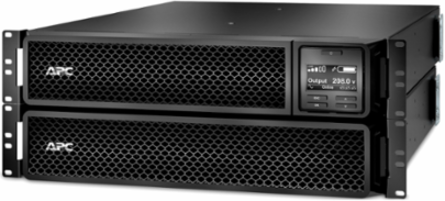

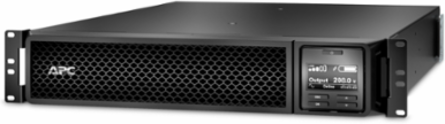

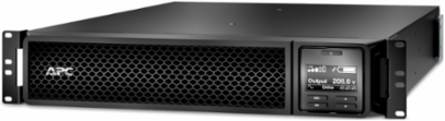

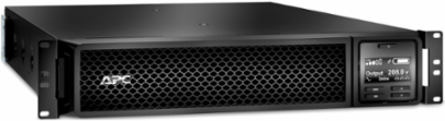

APC SRT3000RMXLT Smart-UPS On-Line 3000VA Rackmount 2U 208V with 2x L6-20R & 1x L6-30R Outlets
- MPN: SRT3000RMXLT
- UPC: 731304317654
- PPN: APC-SRT3000RMXLT
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-20P input, 1x NEMA L6-30R and 2x NEMA L6-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Features
- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
- ECO Mode — Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- 3kVA/2.7kW double-conversion on-line pure sine wave 2U rackmount UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit included)
- Delivers clean power with zero transfer time for critical or sensitive devices
- Add up to 10 external battery packs (SRT96RMBP) for extended runtime
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 3000 VA |
|---|---|
| Input Voltage | 208 V |
| Input Connection Type | NEMA L6-20P |
| Topology | Double Conversion Online |
| Rack Units | 2U |
| Battery Type | Lead-Acid battery |
| Surge Energy Rating | 340 J |
| Width | 17.01 in (432 mm) |
| Weight | 69.00 lb (31.3 kg) |
| Mercury Free | Yes |
| California Proposition 65 | Prop 65 Warning: contains Lead compounds |
| Warranty | 3 years repair or replace (excluding battery), 2 years battery |
| Color | Black |
| Output Power | 2700 W |
|---|---|
| Output Voltage | 208 V |

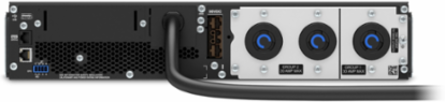

| Output Connection Type | 2 NEMA L6-20R, 1 NEMA L6-30R |
| Waveform Type | Sine wave |
| Cord Length | 10 ft (3.05 m) |
| Typical Recharge Time | 3 h |
| Height | 3.35 in (85 mm) |
| Depth | 25.00 in (635 mm) |
| Mounting Type | front, horizontal rack-mounted |
| RoHS Compliance | Compliant with exemptions |
| Battery Replacement | APCRBC152 |
| Energy Efficiency | ENERGY STAR V2.0 (USA) |
