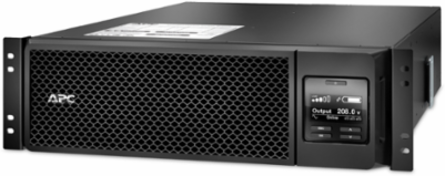

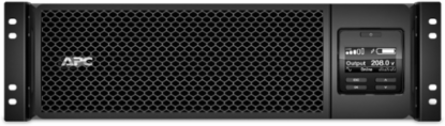

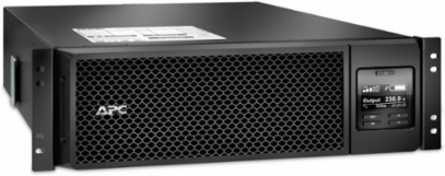

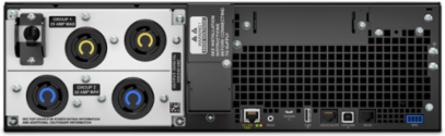

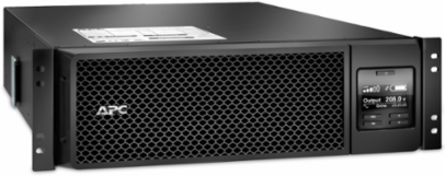

APC SRT5KRMXLT Smart-UPS On-Line 5.4kVA Rackmount 3U 208V 2x L6-20R 2x L6-30R NEMA Outlets
- MPN: SRT5KRMXLT
- UPC: 731304301509
- PPN: APC-SRT5KRMXLT
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS On-Line 5.4kVA Rackmount 3U 208V 2x L6-20R 2x L6-30R NEMA Outlets
Features

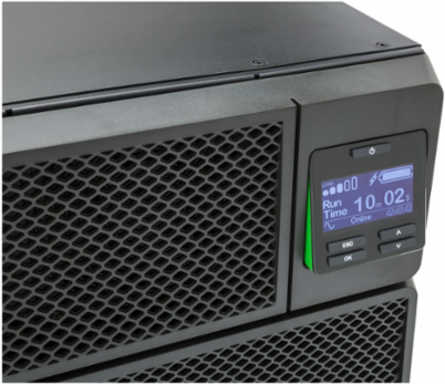

- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
- 10/100 BaseT Connection — Connect the device to a network using a 10 or 100 BaseT connection
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 5400 VA, 4800 W |
|---|---|
| Nominal Output Voltage | 208 V, 240 V |
| Surge Energy Rating | 480 J |
| Input Connection Type | NEMA L6-30P |
| Rack Height | 3U |
| Mount Position | Front, Horizontal |
| Width | 17.01 in (432 mm) |
| Weight | 123 lb (55.79 kg) |
| Battery Voltage | 192 V |
| IP Degree of Protection | IP20 |
| Approvals | ENERGY STAR V2.0 (USA), NOM |
| Energy Efficiency | Energy efficient product |
| Country of Origin | Philippines |
| Input Voltage | 208 V, 240 V |
|---|---|
| Waveform Type | Sine wave |
| Topology | Double Conversion Online |
| Output Connections | 2 NEMA L6-20R, 2 NEMA L6-30R |
| Cord Length | 10 ft (3.05 m) |
| Height | 5.12 in (130 mm) |
| Depth | 28.31 in (719 mm) |
| Battery Type | Lead-Acid battery |
| Typical Recharge Time | 1.5 h |
| RoHS Compliance | Compliant with Exemptions |
| Mercury Free | Yes |
| Color | Black |
