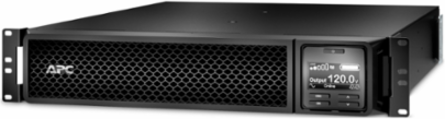

APC SRT1500RMXLAUS Smart-UPS On-Line 1500VA Rackmount 2U 120V 6x NEMA 5-15R Outlets
- MPN: SRT1500RMXLAUS
- UPC: 731304740582
- PPN: APC-SRT1500RMXLAUS
CAD
$2880.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS On-Line 1500VA Rackmount 2U 120V 6x NEMA 5-15R Outlets
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 1500 VA, 1350 W
- Nominal Output Voltage
- 120 V
- Output Connections
- 6 x NEMA 5-15R
- Cord Length
- 6 ft (1.83 m)
- Battery Voltage
- 48 V
- Battery Life
- 3–5 years
- Input Frequency
- 47–70 Hz auto-sensing
- Crest Factor
- 3:1
- Waveform Type
- Sine wave
- Height
- 3.35 in (85 mm)
- Depth
- 20.00 in (508 mm)
- Mount Position
- front, horizontal
- Surge Energy Rating
- 480 J
- IP Degree of Protection
- IP20
- Heat Dissipation
- 463 Btu/h
- Storage Altitude
- 0–50000 ft
- Ambient Air Temperature for Storage
- -4–122 °F (-20–50 °C)
- Storage Relative Humidity
- 0–95% non-condensing
- USB Compatible
- Yes
- Warranty
- 3 years repair or replace (excluding battery), 2 years battery
Input Voltage120 V
Input Connection TypeNEMA 5-15P
Rack Height2U
Battery TypeLead-Acid battery
Typical Recharge Time3 h
Efficiency at Full Load90%
Bypass TypeBuilt-in Bypass
Harmonic Distortion< 2%
Output Frequency50/60 Hz ± 3 Hz sync to mains
Width17.01 in (432 mm)
Weight48.5 lb (22 kg)
TopologyDouble Conversion Online
ColorBlack
Acoustic Level50 dBA
Operating Altitude0–10000 ft
Ambient Air Temperature for Operation32–104 °F (0–40 °C)
Relative Humidity0–95% non-condensing
Emergency Power Off (EPO)Yes
ComplianceTAA, ENERGY STAR V2.0 (USA), RoHS compliant with exemptions
Country of OriginMexico
