APC SRT2200RMXLA-NC Smart-UPS On-Line 2200VA Rackmount 2U 120V 6x 5-20R+1x L5-20R NEMA Outlets
- MPN: SRT2200RMXLA-NC
- UPC: 731304325154
- PPN: APC-SRT2200RMXLA-NC
CAD
$4962.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

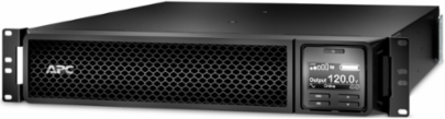

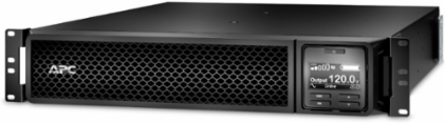

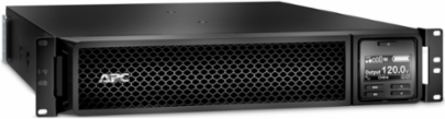

Smart-UPS On-Line 2200VA Rackmount 2U 120V 6x 5-20R+1x L5-20R NEMA Outlets
Features
- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
- ECO Mode — Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 2200 VA
- Input Voltage
- 120 V
- Input Connection Type
- NEMA 5-20P
- Topology
- Double Conversion Online
- Bypass Type
- Built-in Bypass
- Harmonic Distortion
- Less than 2%
- Surge Energy Rating
- 340 J
- Dimensions
- 17.01 in (432 mm) W x 3.35 in (85 mm) H x 22.99 in (584 mm) D
- Cable Length
- 6 ft (1.83 m)
- Battery Voltage
- 72 V
- Battery Life
- 3 to 5 years
- Battery Recharge Power
- 102 W
- Operating Temperature Range
- 32 to 104 °F (0 to 40 °C)
- Relative Humidity
- 0 to 95% non-condensing
- IP Rating
- IP20
- Warranty
- 3 years repair or replace (excluding battery), 2 years battery
- Mount Position
- front, horizontal
Power1800 W
Output Voltage120 V

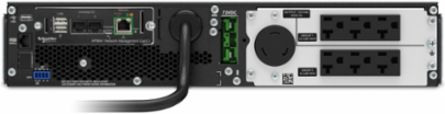

Output Connection Type6 NEMA 5-20R, 1 NEMA L5-20R
Input Frequency40 - 70 Hz auto-sensing
Crest Factor3 : 1
Output Frequency50/60 Hz ± 3 Hz
Rack Units2U
Weight55.12 lb (25 kg)
Battery TypeLead-Acid battery
Typical Recharge Time3 h
Number of Battery Modules1
Acoustic Level55 dBA
Storage Temperature Range-4 to 122 °F (-20 to 50 °C)
Storage Relative Humidity0 to 95% non-condensing
ComplianceENERGY STAR V2.0 (USA), RoHS Compliant, Prop 65 Warning, Mercury Free, REACH SVHC
ColorBlack
