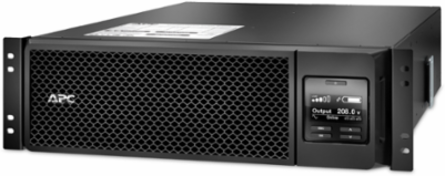

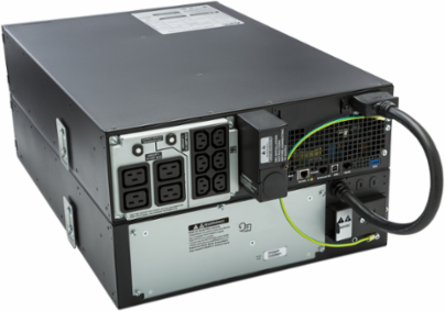

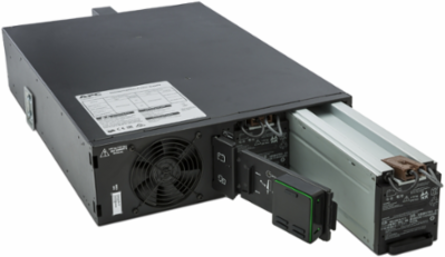

APC SRT5KRMXLT-IEC Smart-UPS On-Line 5kVA Rackmount 3U, 208V, Sine Wave, 4 C13/4 C19 Outlets
- MPN: SRT5KRMXLT-IEC
- UPC: 731304300939
- PPN: APC-SRT5KRMXLT-IEC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS On-Line 5kVA Rackmount 3U, 208V, Sine Wave, 4 C13/4 C19 Outlets
Features

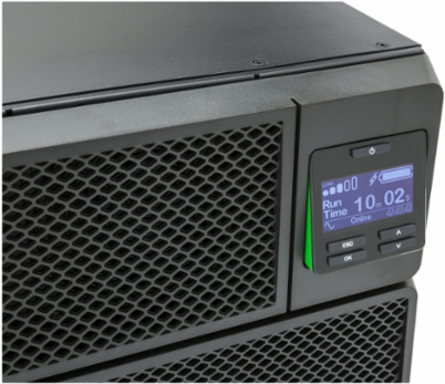

- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
- 10/100 BaseT Connection — Connect the device to a network using a 10 or 100 BaseT connection
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 5000 VA, 4800 W
- Nominal Output Voltage
- 208 V, 240 V
- Output Connection Type

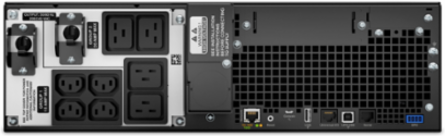

- 4 IEC 60320 C13, 2 IEC Jumpers, 4 IEC 60320 C19
- Waveform Type
- Sine wave
- Rack Height
- 3U
- Width
- 17.01 in (432 mm)
- Weight
- 123 lb (55.79 kg)
- Battery Voltage
- 192 V
- Color
- Black
- Warranty
- 3 years repair or replace, 2 years battery
- Input Frequency Range
- 40 to 70 Hz auto-sensing
- Crest Factor
- 3:1
- Output Frequency
- 50/60 Hz 3 Hz sync to mains
- Heat Dissipation
- 1047 Btu/h
- Operating Temperature
- 32 to 104 F (0 to 40 C)
- Storage Altitude
- 0 to 50000 ft (0 to 15240 m)
- Storage Relative Humidity
- 0 to 95% non-condensing
- RoHS Compliance
- Compliant with exemptions
- Replacement Battery
- APCRBC140
- California Proposition 65
- Prop 65 Compliant (contains lead)
Input Voltage208 V, 240 V
Input Connection TypeNEMA L6-30P
TopologyDouble Conversion Online
Surge Energy Rating480 J
Height5.12 in (130 mm)
Depth28.31 in (719 mm)
Battery TypeLead-Acid battery
Typical Recharge Time1.5 h
Mounting Positionfront, horizontal
Input Voltage Range100 to 275 V adjustable (half load)
Bypass TypeInternal bypass (automatic and manual)
Harmonic DistortionLess than 2%
Acoustic Level55 dBA
Operating Altitude0 to 10000 ft
Storage Temperature5 to 113 F (-15 to 45 C)
Relative Humidity0 to 95% non-condensing
IP Degree of ProtectionIP20
ENERGY STAR ApprovalsENERGY STAR V2.0 (USA)
Mercury FreeYes
