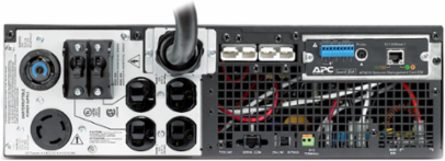

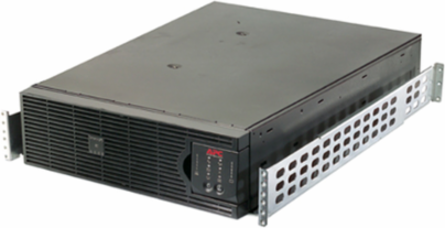

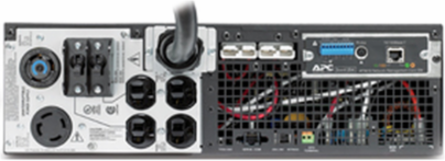

APC SURTD6000RMXLP3U Smart-UPS RT 6000 VA 3U Rack Mount, 208V, 4x NEMA 5-20R, L6-30R, L14-30R Outlets
- MPN: SURTD6000RMXLP3U
- UPC: 731304258827
- PPN: APC-SURTD6000RMXLP3U
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS On-Line provides high-density, true double-conversion online power protection for servers, voice/data networks, medical labs, and light industrial applications. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute™ management software provides unattended graceful shutdown of network operating systems. All models 6kVA and above include an integrated network management card for remote management (optional on models below 6kVA). The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, internal bypass, and input power factor correction.
Features
- Multiple output voltages — 48Vdc, 24Vdc, and 120Vac are available to power all of the equipment in the cabinet.
- Multiple output voltages - 48V DC, 24V DC, and 120V AC are available
- Rack-mountable
Documentation & Downloads
Specifications
Conformance
| Rohs | Compliant By Exemption |
|---|---|
| Reach Compliance Date | 2026-02-01 |
| Reach | Reference contains Substances of Very High Concern above the threshold |
|---|---|
| Removable Battery | User replaceable |
Battery
| ReplacementBattery | APCRBC140 |
|---|---|
| BatteryType | Lead-Acid battery |
| TypicalRechargeTime | 2.5 h |
|---|
Sustainability
| TakeBack | Yes |
|---|---|
| Minimum percentage of recycled plastic content | 15 % |
| Packaging with recycled cardboard | Yes |
| Product contributes saved avoided emissions | No |
| Carbon Footprint | 17969.2882890748 |
|---|---|
| Recycled metal content in percentage | 0 % |
| Packaging without single use plastic | No |
Weight, Height, Width, Depth
| Height | 5.12 in (130 mm) |
|---|---|
| Depth | 25.98 in (660 mm) |
| Width | 17.01 in (432 mm) |
|---|---|
| Weight | 127.73 lb(US) (58.06 kg) |
Physical
| ProductOrientation | lower |
|---|---|
| Color | Black |
| MountPosition | front |
| RackHeight | 3U |
|---|---|
| SurgeEnergyRating | 480 J |
Input
| CordLength | 10 ft (3.05 m) |
|---|---|
| InputVoltage | 120 V AC 1 phase, 208 V AC 1 phase |
| InputConnectionType | NEMA L14-30P |
|---|
Output
| OutputPowerCapacity | 6000 VA |
|---|---|
| NominalOutputVoltage | 120 V AC 1 phase, 208 V AC 1 phase |
| Waveformtype | Sine wave |
| OutputConnections | 1 NEMA, 4 NEMA |
|---|---|
| Topology | On-Line |
Warranty
| Warranty | Core product: 24 month(s) |
|---|
