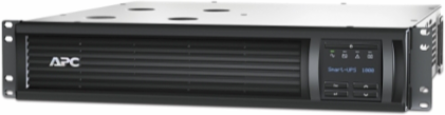

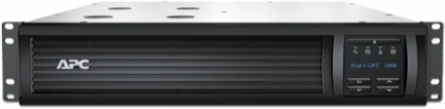

APC SMT1000RMI2U Smart-UPS Rackmount 2U, 1000VA, 230V, 4x IEC C13, Sine Wave Output
- MPN: SMT1000RMI2U
- UPC: 731304284741
- PPN: APC-SMT1000RMI2U
CAD
$1626.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS Rackmount 2U, 1000VA, 230V, 4x IEC C13, Sine Wave Output
Features
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency — Reduces utility costs, generates less heat.
- Intelligent Card Slot — Customize UPS capabilities with management cards.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single switched outlet group — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 1000 VA / 700 W
- Input Voltage
- 230 V
- Waveform Type
- Sine wave
- Surge Energy Rating
- 459 J
- Output Connections
- 6 IEC320 ports
- Width
- 18.9 in (48.0 cm)
- Height
- 3.35 in (8.5 cm)
- Interface Ports
- RJ-45 Serial, SmartSlot, USB
- Battery Type
- Lead-acid, maintenance-free sealed, leak proof
- Approvals
- CSA, EAC, RCM, VDE
- Color
- Black
Nominal Output Voltage230 V
Input Voltage Range160 - 286 V
TopologyLine interactive
Input Connection TypeIEC 320 C14
Rack Height2 U
Depth18.7 in (47.5 cm)
Net Weight28.18 kg (62 lb)
Mount PositionFront
RoHS ComplianceCompliant
Warranty3 years electronics, 2 years battery
