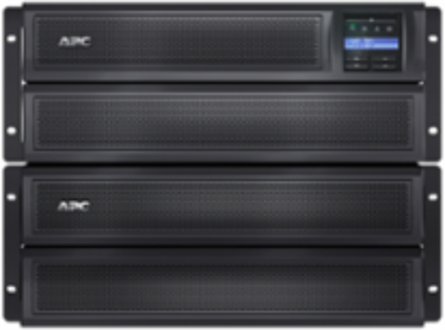

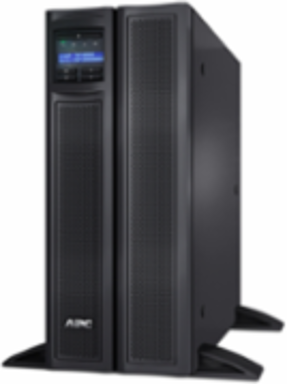

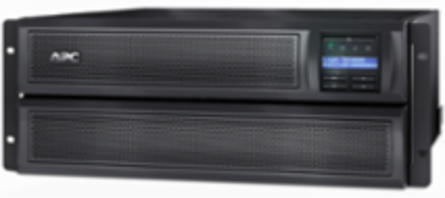

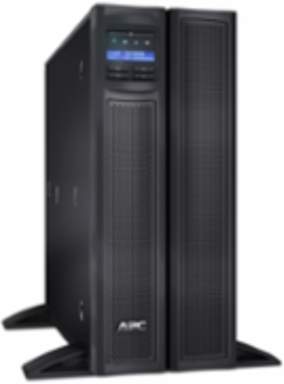

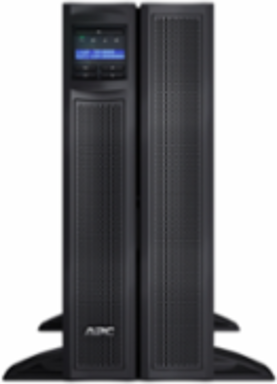

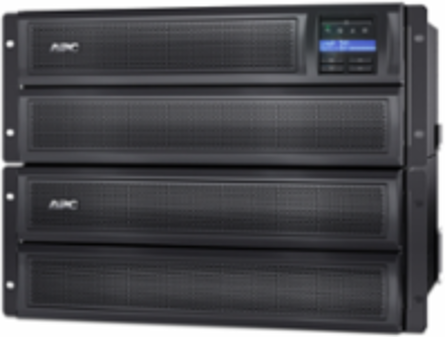

APC SMX2200HV APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth
APC SMX2200HV APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth
- MPN: SMX2200HV
- UPC: 731304292609
- PPN: APC-SMX2200HV
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3716.42/ EA
Description

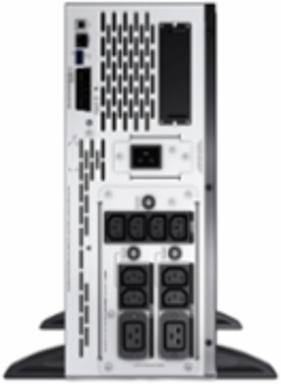

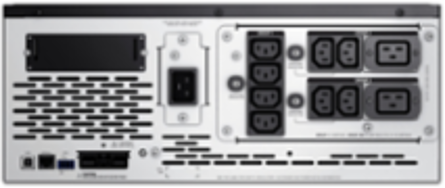

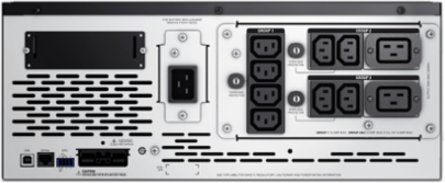

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Features
- StruxureWare Data Center Expert compatible — Enables centralized management via StruxureWare Data Center Expert.
- High online efficiency — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High frequency design — Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Predictive replace battery date — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Auto recognition of external batteries — UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Multiple switched outlet groups — Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Sequenced network shutdown and reboot — Customize network shutdown and reboot sequence of connected servers and UPSs.
- Scalable runtime — Allows additional run time to be quickly added as needed.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
- Intelligent battery management — Maximizes battery performance, life, and reliability through intelligent, precision charging.
- 2200VA/1980W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
- User-selectable high voltage setting of 200V-240V
- Add up to 10 external battery packs (SMX120BP)
- Short depth UPS provides extra space for cable management
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Ideal for servers, storage, networking & commercial applications
Specifications
Conformance
- Approvals
- CE
Battery
- ReplacementBattery
- APCRBC143
- BatteryType
- Lead-Acid battery
TypicalRechargeTime3 h
Sustainability
- Rohs
- Compliant with Exemptions
- GreenPremiumStatus
- Green Premium product
- TakeBack
- Take-back program available
ReachReference contains Substances of Very High Concern above the threshold
OptimizedEnergyEfficiencyEnergy efficient product
CaliforniaProposition65WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Physical
- ProductOrientation
- lower
- Color
- Black
- MountPosition
- front
RackHeight4U
SurgeEnergyRating645 J
Input
- CordLength
- 6.56 ft (2.00 m)
- InputVoltage
- 208 V
InputConnectionTypeIEC 320 C20
Output
- OutputPowerCapacity
- 2200 VA
- NominalOutputVoltage
- 208 V
- Waveformtype
- Sine wave
OutputConnections8 IEC 320 C13
TopologyLine Interactive
Warranty
- Warranty
- 3 years repair or replace (excluding battery) and 2 years for battery
Width, Height, Width, Depth
- Weight
- 85.01 lb(US) (38.56 kg)
- Width
- 7.01 in (17.8 cm) in
Height17.01 in (43.2 cm) in
Depth19.02 in (48.3 cm) in
