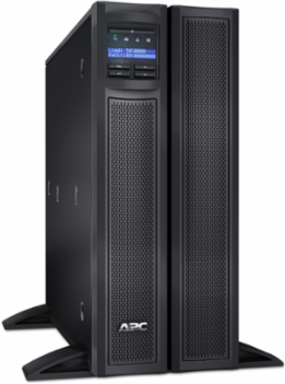

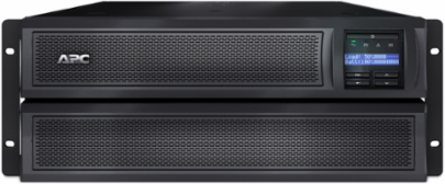

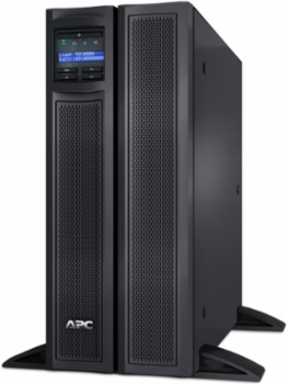

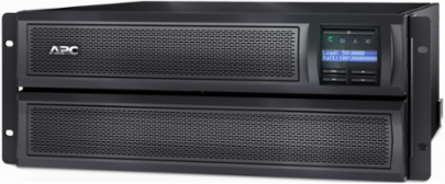

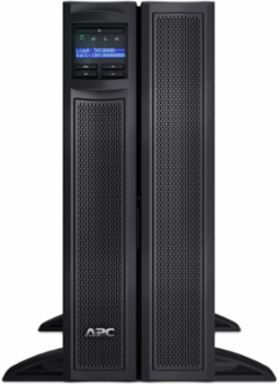

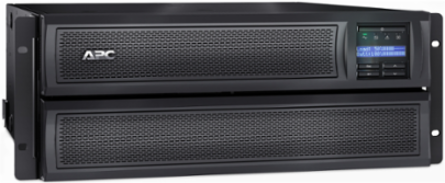

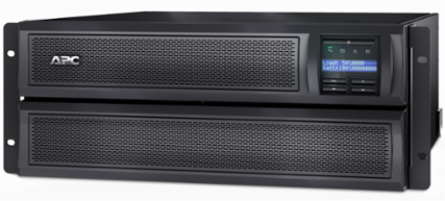

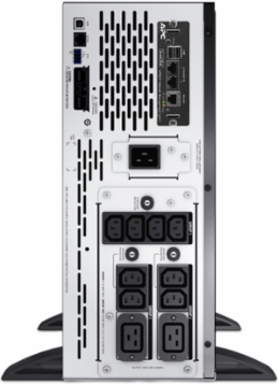

APC SMX2200HVNC Smart-UPS X Line Interactive 2200VA 4U Rack/Tower 208V-230V Sine Wave
- MPN: SMX2200HVNC
- UPC: 731304327158
- PPN: APC-SMX2200HVNC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS X Line Interactive 2200VA 4U Rack/Tower 208V-230V Sine Wave
Features
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Provides for remote management and control of the UPS over a network out of the box. — Provides for remote management and control of the UPS over a network out of the box.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 2200 VA
- Input Voltage
- 208 V, 220 V, 230 V, 240 V
- Input Frequency
- 50/60 Hz 3 Hz auto-sensing
- Topology
- Line Interactive
- Transfer Time
- 6 ms typical, 10 ms maximum
- Typical Recharge Time
- 3 h
- Battery Charge Power
- 233 W
- Number of Outlets

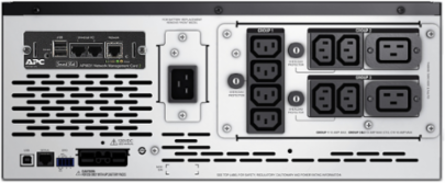

- 8 IEC 320 C13, 2 IEC 320 C19, 2 IEC Jumpers
- Rack Units
- 4U
- Surge Energy Rating
- 645 J
- Dimensions (HxWxD)
- 17.01 in x 7.01 in x 19.02 in (43.2 cm x 17.8 cm x 48.3 cm)
- Mounting Type
- Rack-mounted, Two post mountable, front mount position
- Acoustic Level
- 55 dBA
- Operating Altitude
- 0-10000 ft
- Operating Temperature
- 32-104 F (0-40 C)
- Relative Humidity
- 0-95%
- Standards
- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
- RoHS
- Compliant with exemptions
- Mercury Free
- Yes
- California Proposition 65
- Prop 65 warning for lead compounds
- Warranty
- 3 years repair or replace (excluding battery), 2 years battery
- Color
- Black
Power Rating1980 W
Output Voltage208 V, 220 V, 230 V, 240 V
Output Frequency50/60 Hz 3 Hz sync to mains
Waveform TypeSine wave
Battery TypeLead-Acid battery
Battery Life3-5 years
Extendable Run TimeYes, 1 module
Number of Output Cables1
Harmonic DistortionLess than 5%
Cable Length6.56 ft (2.00 m)
Net Weight85.01 lb (38.56 kg)
Input Connection TypesBS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
Heat Dissipation150 Btu/h
Storage Altitude0-50000 ft (0-15240 m)
Storage Temperature5-113 F (-15-45 C)
CertificationsCE, EAC, IRAM, RCM, TISI, VDE, UK PSTI
Battery ReplaceableUser replaceable
Lead FreeYes
ReachContains Substances of Very High Concern above threshold
Country of OriginPhilippines
Replacement BatteryAPCRBC143
