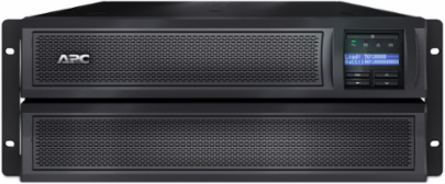

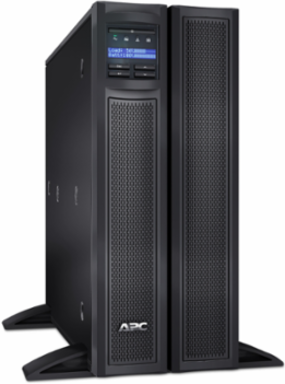

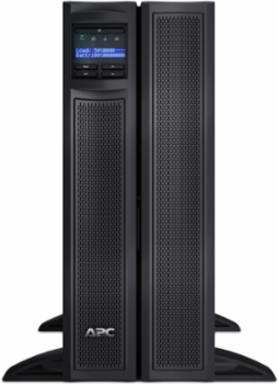

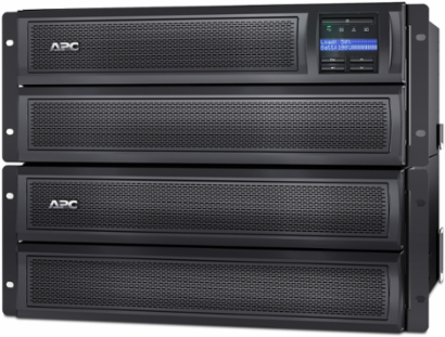

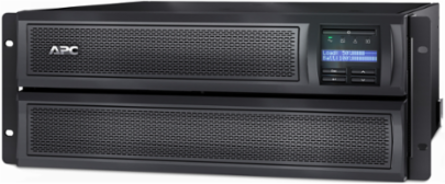

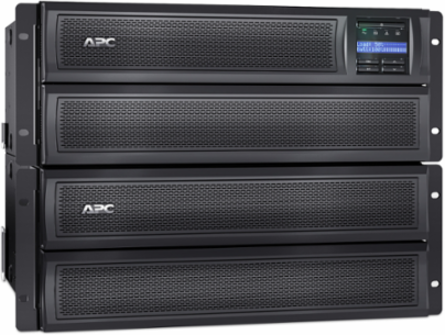

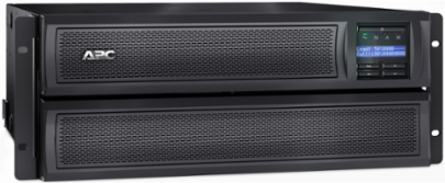

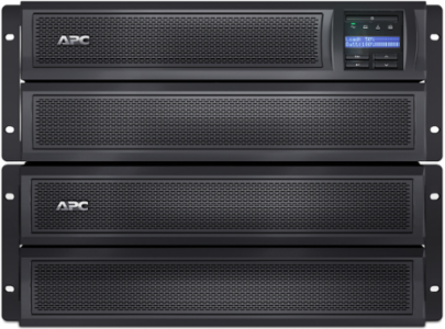

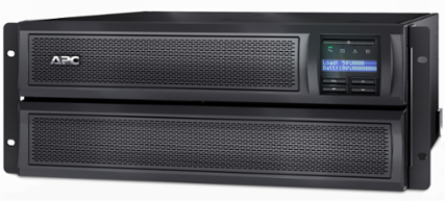

APC SMX3000HV Smart-UPS X 3000VA Line Interactive Rack/Tower 4U 208V-230V Sine Wave Output
- MPN: SMX3000HV
- UPC: 731304292616
- PPN: APC-SMX3000HV
CAD
$4611.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS X 3000VA Line Interactive Rack/Tower 4U 208V-230V Sine Wave Output
Features
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Reduces or eliminates bulky transformers resulting in lighter units for ease of handling. — Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- UPS recognizes when external battery packs are attached and automatically adjusts runtime. — UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Sequenced shutdown and reboot — Customize shutdown and reboot sequence of connected servers and UPSs.
- StruxureWare Data Center Expert Compatibility — Discover and monitor PowerChute Agents via SNMP v1 or v3. Integrate SNMP Traps for timely notifications of UPS critical events.
- Scalable runtime — Allows additional run time to be quickly added as needed.
- Cold-start capable — Provides temporary battery power when the utility power is out.

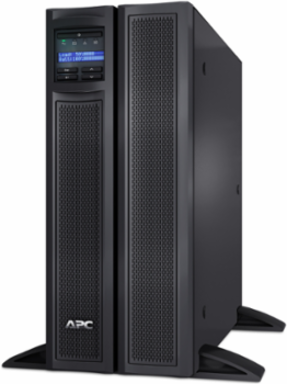

- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
- Intelligent battery management — Maximizes battery performance, life, and reliability through intelligent, precision charging.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 3000 VA
- Nominal Output Voltage
- 230 V
- Topology
- Line Interactive
- Typical Recharge Time
- 3 h
- Surge Energy Rating
- 645 J
- Mounting Position
- front
- Width
- 7.01 in (178 mm)
- Height
- 17.01 in (432 mm)
- Cord Length
- 6 ft (1.83 m)
- Output Connections

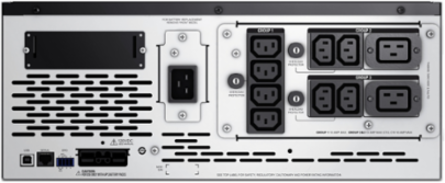

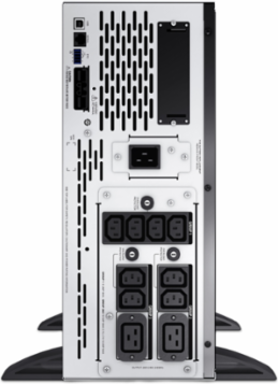

- 8 IEC 320 C13, 2 IEC Jumpers, 2 IEC 320 C19
- Operating Temperature Range
- 32 to 104 °F (0 to 40 °C)
- Country of Origin
- Philippines
- RoHS
- Compliant with Exemptions
Power Rating2700 W
Input Voltage208 V, 230 V
Output WaveformSine wave
Battery TypeLead-Acid battery
TopologyLine Interactive
Rack Height4U
Depth19.02 in (483 mm)
Weight85.19 lb (38.64 kg)
Input Connection TypeIEC 320 C20, Schuko CEE 7 / EU1-16P, BS1363A British
Replacement BatteryAPCRBC143
ColorBlack
Standards ComplianceCE, EAC, IRAM, RCM, TISI, VDE, UK PSTI
Warranty3 years repair or replace (excluding battery), 2 years battery
