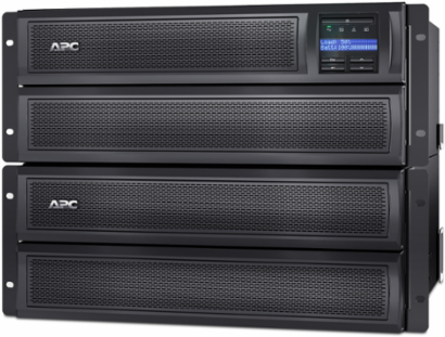

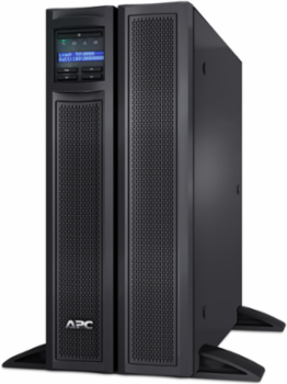

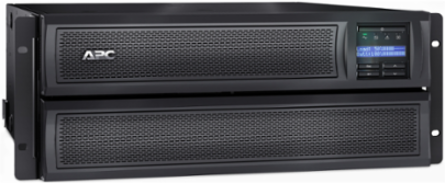

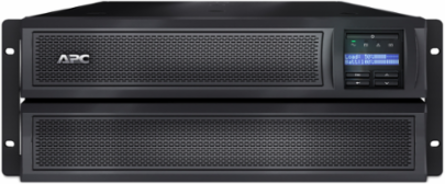

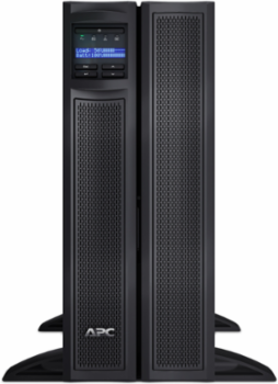

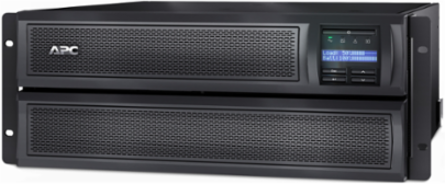

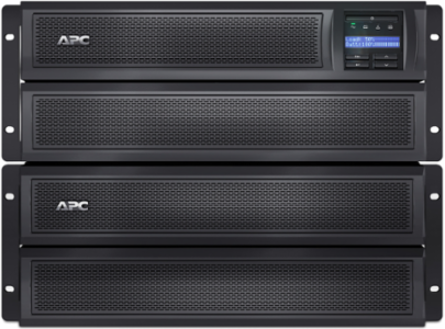

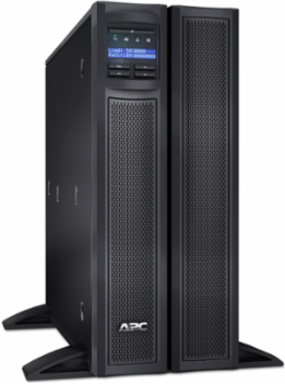

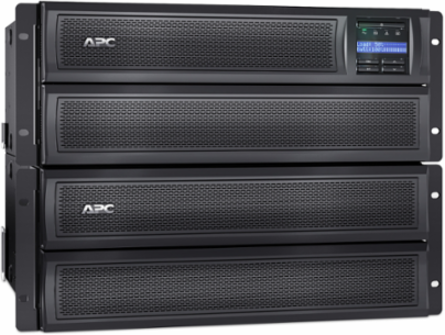

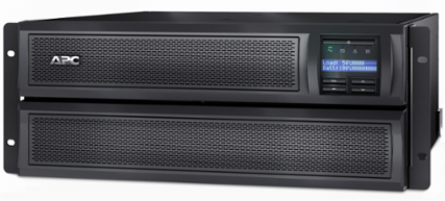

APC SMX3000LV Smart-UPS X 3kVA Line Interactive 4U Rack/Tower Convertible, 120V, 6x 5-15R, Sine Wave Output
- MPN: SMX3000LV
- UPC: 731304292647
- PPN: APC-SMX3000LV
CAD
$4104.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS X 3kVA Line Interactive 4U Rack/Tower Convertible, 120V, 6x 5-15R, Sine Wave Output
Features
- StruxureWare Data Center Expert compatible — Enables centralized management via StruxureWare Data Center Expert.
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Reduces or eliminates bulky transformers resulting in lighter units for ease of handling. — Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- UPS recognizes when external battery packs are attached and automatically adjusts runtime. — UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Sequenced network shutdown and reboot — Customize network shutdown and reboot sequence of connected servers and UPSs.
- Scalable runtime — Allows additional run time to be quickly added as needed.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
- Intelligent battery management — Maximizes battery performance, life, and reliability through intelligent, precision charging.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 2880 VA
- Voltage
- 120 V
- Input Frequency
- 50/60 Hz ±3 Hz auto-sensing
- Surge Energy Rating
- 540 J
- Typical Battery Recharge Time
- 3 h
- Operating Temperature Range
- 32 to 104 °F (0 to 40 °C)
- Operating Altitude
- 0 to 10,000 ft
- Relative Humidity
- 0 to 95%
- Capacity
- 3 kVA

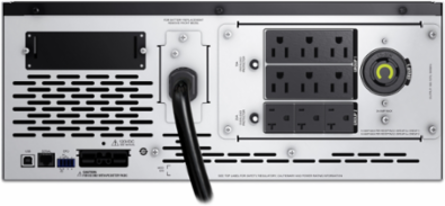

- Output Connections

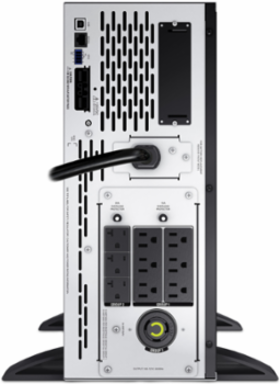

- 6 NEMA 5-15R, 3 NEMA 5-20R, 1 NEMA L5-30R
- Weight
- 85.19 lb (38.64 kg)
- Form Factor
- 4U Rack/Tower Convertible
- Country of Origin
- Philippines
- REACH
- Contains SVHC above threshold
- Approvals
- BSMI, CSA, NOM, TUV, VCCI Class A
Rated Power2700 W
Output WaveformSine wave
Transfer Time2-4 ms (4 ms typical, 8 ms max)
Battery TypeLead-Acid battery
Battery Life3 to 5 years
Storage Temperature Range5 to 113 °F (-15 to 45 °C)
Storage Altitude0 to 50,000 ft (0 to 15,240 m)
Noise Level55 dBA
Input Connection TypeNEMA L5-30P
Dimensions (H x W x D)17.01 in x 7.01 in x 19.02 in (432 mm x 178 mm x 483 mm)
Rack Height4U
Material ColorBlack
RoHS ComplianceCompliant with Exemptions
California Proposition 65Prop 65 Compliant
