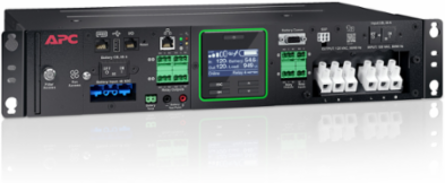

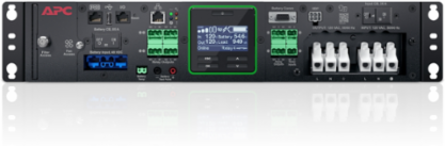

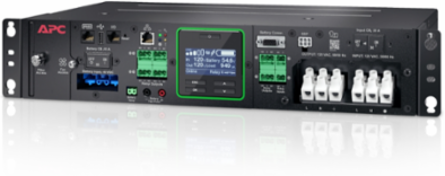

APC XU2K0LLXXRCC SmartUPS Industrial 2000VA, 1800W, 120V, Double Conversion Online, 22.05 lb
- MPN: XU2K0LLXXRCC
- UPC: 731304399377
- PPN: APC-XU2K0LLXXRCC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SmartUPS Industrial 2000VA, 1800W, 120V, Double Conversion Online, 22.05 lb
Features
- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Wide temperature operation — The PMU is able to perform under extremely cold or hot conditions, ranging from -35C to 165C.
- Conformally coated boards — The electronics are designed to withstand dusty and humid environments.
- All inputs, outputs and local manageability is accessible from the front of the unit. — All inputs, outputs and local manageability is accessible from the front of the unit.
- Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions. — Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Network manageable — Provides remote power management of the UPS over the network.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 2000 VA
- Input Voltage
- 120 V
- Input Current
- 26 A
- Output Frequency
- 50/60 Hz ±3 Hz sync to mains
- Let Through Voltage Rating
- 40 V
- Topology
- Double Conversion Online
- Width
- 17.01 in (432 mm)
- Weight
- 22.05 lb (10 kg)
- Battery Voltage
- 48 V
- IP Degree of Protection
- IP20
- Certifications
- CSA, UL 1778
- Reach
- Contains SVHC above threshold
- Output Connections
- Hard Wire 3-wire (H N + E)
Power Output1800 W
Output Voltage120 V
Input Frequency40 - 70 Hz auto-sensing
Surge Energy Rating432 J
Waveform TypeSine wave
Height3.46 in (88 mm)
Depth10.24 in (260 mm)
Battery TypeExternal battery system
Mounting ModeRack-mounted
RoHS ComplianceCompliant with Exemptions
Mercury FreeYes
Product OrientationNo preference
