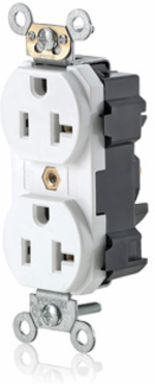

Leviton M5362-SW 20 Amp Lev-Lok® Duplex Receptacle/Outlet, Industrial Grade, Self-Grounding
Leviton M5362-SW 20 Amp Lev-Lok® Duplex Receptacle/Outlet, Industrial Grade, Self-Grounding
- MPN: M5362-SW
- UPC: 078477363492
- PPN: LEV-M5362-SW
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$23.73/ EA
Description

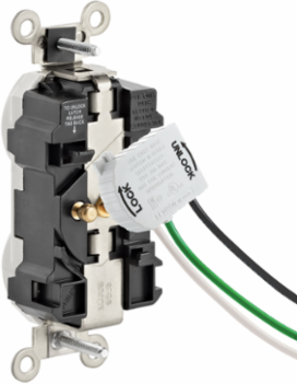

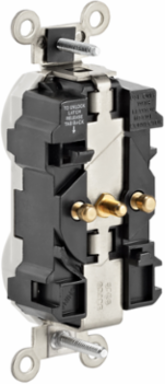

Lev-Lok Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Modular, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White Mating Lev-Lok Wiring Module Required for Use, Sold Separately Lev-Lok Savings Calculator
Features
- The Lev-Lok® Modular Wiring Device System is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor's need for fast, easy installation. Available in extra heavy duty hospital and industrial grades, and heavy duty commercial grade platforms.
Specifications
Standards and Certifications
- ANSI
- C-73
- NOM Certified
- 057
- Warranty
- 10-Year Limited
NEMAWD-1 & WD-6
UL Fed Spec WC-596File E13399
cULusListed
Material Specifications
- Base Material
- Nylon
- Cover Material
- Nylon
- Line Contacts
- 0.040” Thick Solid Brass
- Mounting Screws
- Triple Combination Head, Steel
BushingSolid Brass
Ground ClipsBrass
Locking PinsSolid Brass
Mounting StrapGalvanized Steel with Riveted Ground Contacts
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
TerminationModular
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Brand
- Lev-Lok
- Device Type
- Duplex Receptacle Outlet
- Grade
- Heavy-Duty Industrial Specification Grade
ColorWhite
Feature 4Smooth Face
Environmental Specifications
- Operating Temperature
- -40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Maximum Working Voltage
- 125V as rated
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Current InterruptingCertified for current interrupting at full rated current
GroundingSelf-Grounding
Pole2
Voltage125 VAC
AC Horsepower Ratings
- Horsepower Rating
- 1 HP
