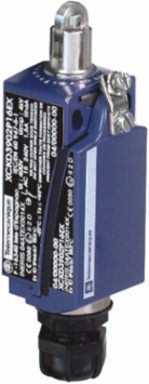

Telemecanique Sensors XCKD3902P16EX Limit switch, Limit switches XC Standard, XCKD, roller plunger, 2NC + NO, ATEX/IECEx

MPN: XCKD3902P16EX
PPN: TES-XCKD3902P16EX

$356.85

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch, Limit switches XC Standard, XCKD, roller plunger, 2NC + NO, ATEX/IECEx

Documentation & Downloads

Specifications

Key Specifications

Movement Of Operating Head	linear
Electrical Connection	screw-clamp terminals 1 x 0.34...2 x 0.75 mm²
Fixing Mode	by the body
Sensor Design	compact form C CENELEC EN 50047
Material	metal
Head Type	plunger head
Type Of Approach	lateral approach, 2 directions
Contacts Type And Composition	2 NC + 1 NO
Positive Opening	with
Contact Operation	snap action
Maximum Actuation Speed	0.5 m/s
Device Short Name	XCKD

Range Of Product	Telemecanique Limit switches XC Standard
Number Of Steps	1
Type Of Operator	spring return roller plunger steel
Product Or Component Type	limit switch
Ip Degree Of Protection	IP66 IEC 60529 \|\| IP67 IEC 60529
Switch Actuation	by 30° cam
Series Name	standard format
Body Type	fixed
Contacts Insulation Form	Zb
Cable Entry Number	1 tapped entry M16 x 1.5 cable gland (included) 4-8 mm
Minimum Force For Tripping	12 N
Number Of Poles	3

Complementary

Height	65-65 mm
Minimum Actuation Speed	0.01 m/min
Head Material	zamak
[Ui] Rated Insulation Voltage	300 VUL 508 \|\| 400 V 3)IEC 60947-1 \|\| 300 VCSA C22.2 No 14
Positive Opening Minimum Force	36 N
Body Material	zamak
Width	31 mm
[Ithe] Conventional Enclosed Thermal Current	6 A AC

Short-Circuit Protection	6 A cartridge fuse gG
Marking	II2 D-Ex tb IIIC T85°C Db IP66/67
[Uimp] Rated Impulse Withstand Voltage	4 kV IEC 60664 \|\| 4 kV IEC 60947-1
Electrical Durability	5000000 cycles, DC-13, inductive, 120 V, 2 W 3600 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, inductive, 24 V, 4 W 3600 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, inductive, 48 V, 3 W 3600 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C
Mechanical Durability	10000000 cycles
Contact Code Designation	B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN 60947-5-1 \|\| B300, AC-15 (Ue = 240 V), Ie = 1.5 A IEC 60947-5-1 appendix A \|\| R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN 60947-5-1 \|\| R300, DC-13 (Ue = 250 V), Ie = 0.1 A IEC 60947-5-1 appendix A
Depth	30 mm
Maximum Resistance Across Terminals	25 MOhm IEC 60255-7 category 3

Environment

Product Certifications	INERIS 04ATEX0014X \|\| IEC-Ex INE 17.0020X
Standards	EN/IEC 60079-31 \|\| EN/IEC 60079-0
Shock Resistance	50 gn 11 ms IEC 60068-2-27
Directives	2014/34/EU - ATEX directive
Protective Treatment	TC

Ambient Air Temperature For Operation	-20-60 °C
Dust Zone	zone 21 - 22
Vibration Resistance	25 gn 10-500 Hz)IEC 60068-2-6
Electrical Shock Protection Class	class I IEC 61140 \|\| class I NF C 20-030

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110614EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
