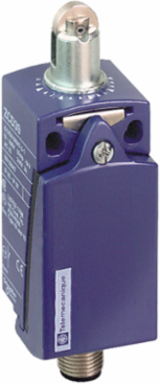

Telemecanique Sensors XCKD2102M12 Limit switch, Limit switches XC Standard, XCKD, steel roller plunger, 1NC+1 NO, snap, M12
- MPN: XCKD2102M12
- PPN: TES-XCKD2102M12
- UNSPSC: 39122213
CAD
$137.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XCKD compact format (CENELEC EN 50047) limit switch has a steel roller plunger and a Zamak body. This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is ideal for all industrial machines like packaging, materials handling, conveyors, machining, food and beverage. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards and is also RoHS compliant. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head. It has a standard M12 connector, compatible with all existing market sensor cabling.
Documentation & Downloads
Specifications
Key Specifications
| Movement Of Operating Head | linear |
|---|---|
| Fixing Mode | by the body |
| Sensor Design | compact form C CENELEC EN 50047 |
| Head Material | zamak |
| Head Type | plunger head |
| Series Name | standard format |
| Body Type | fixed |
| Body Material | zamak |
| Number Of Poles | 2 |
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Type Of Operator | spring return roller plunger metal |
| Product Or Component Type | limit switch |
| Material | metal |
| Type Of Approach | lateral approach, 2 directions |
| Contacts Type And Composition | 1 NC + 1 NO |
| Contact Operation | snap action |
| Device Short Name | XCKD |
Complementary
| Height | 65-65 mm |
|---|---|
| Short-Circuit Protection | 4 A cartridge fuse gG |
| [Ithe] Conventional Enclosed Thermal Current | 4 A |
| [Uimp] Rated Impulse Withstand Voltage | 0.8 kV IEC 60664 || 0.8 kV IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 60 V 3)IEC 60947-1 |
| Positive Opening Minimum Force | 36 N |
| Contacts Insulation Form | Zb |
| Mechanical Durability | 10000000 cycles |
| Minimum Force For Tripping | 12 N |
| Depth | 30 mm |
| Maximum Resistance Across Terminals | 25 MOhm IEC 60255-7 category 3 |
| Terminals Description Iso N°1 | (21-22)NC || (13-14)NO |
|---|---|
| Electrical Connection | male connector M12, 5 pins |
| Net Weight | 0.195 kg |
| Switch Actuation | by 30° cam |
| Electrical Durability | 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Positive Opening | with |
| [Ie] Rated Operational Current | 3 A 50 V, AC-15 EN/IEC 60947-5-1 appendix A || 0.27 A 50 V, DC-13 EN/IEC 60947-5-1 appendix A |
| Maximum Actuation Speed | 0.5 m/s |
| Width | 31 mm |
| Repeat Accuracy | 0.1 mm on the tripping points with 1 million operating cycles |
Environment
| Product Certifications | UL || CCC || CSA |
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TC |
| Ik Degree Of Protection | IK06 EN 50102 |
|---|---|
| Standards | IEC 60947-5-1 || CSA C22.2 No 14 || EN 60204-1 || IEC 60204-1 || UL 508 || EN 60947-5-1 |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Electrical Shock Protection Class | class I IEC 61140 || class I NF C 20-030 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
