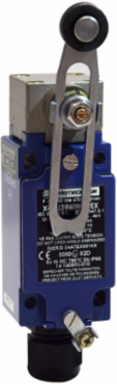

Telemecanique Sensors XCKJ390541H29EX Limit switch, Limit switches XC Standard, XCKJ, roller lever, 2NC + NO, ATEX/IECEx
- MPN: XCKJ390541H29EX
- PPN: TES-XCKJ390541H29EX
CAD
$306.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Certified limit switch, conforming to International standards and European Directive ATEX explosive atmospheres dust. This limit switch is a product in a standardized format (EN50041) for heavy duty use. It includes a robust thermoplastic spring return roller lever head, variable length. 2 NC + 1 NO snap positive contacts.
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- rotary
- Electrical Connection
- screw-clamp terminals 1 x 0.34...2 x 0.75 mm²
- Fixing Mode
- by the body
- Product Or Component Type
- limit switch
- Ip Degree Of Protection
- IP66 IEC 60529
- Switch Actuation
- by 30° cam
- Series Name
- standard format
- Body Type
- fixed
- Contacts Insulation Form
- Zb
- Cable Entry Number
- 1 tapped entry M20 x 1.5 cable gland (included) 9-12 mm
- Minimum Torque For Tripping
- 0.25 N.m
- Number Of Poles
- 3
Range Of ProductTelemecanique Limit switches XC Standard
Number Of Steps1
Type Of Operatorspring return roller lever thermoplastic variable length
Materialmetal
Head Typerotary head
Type Of Approachlateral approach, 1 or 2 programmable direction
Contacts Type And Composition2 NC + 1 NO
Positive Openingwithout
Contact Operationsnap action
Maximum Actuation Speed1.5 m/s
Device Short NameXCKJ
Complementary
- Height
- 77-77 mm
- Minimum Actuation Speed
- 0.01 m/min
- Head Material
- zamak
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 400 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
- Positive Opening Minimum Torque
- 0.5 N.m
- Body Material
- zamak
- Width
- 40 mm
- [Ithe] Conventional Enclosed Thermal Current
- 6 A AC
Short-Circuit Protection6 A cartridge fuse gG
MarkingII2 D-Ex tb IIIC T85°C Db IP66/67
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60664 || 4 kV IEC 60947-1
Electrical Durability5000000 cycles, DC-13, inductive, 120 V, 4 W 3600 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 3 W 3600 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 2 W 3600 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C
Mechanical Durability20000000 cycles
Contact Code DesignationB300, AC-15 (Ue = 240 V), Ie = 1.5 A EN 60947-5-1 || B300, AC-15 (Ue = 240 V), Ie = 1.5 A IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN 60947-5-1 || R300, DC-13 (Ue = 250 V), Ie = 0.1 A IEC 60947-5-1 appendix A
Depth44 mm
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3
Environment
- Product Certifications
- INERIS 04ATEX0014X || IEC-Ex INE 17.0020X
- Standards
- EN/IEC 60079-31 || EN/IEC 60079-0
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Directives
- 2014/34/EU - ATEX directive
- Protective Treatment
- TC
Ambient Air Temperature For Operation-20-60 °C
Dust Zonezone 21 - 22
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Electrical Shock Protection Classclass I IEC 61140 || class I NF C 20-030
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
