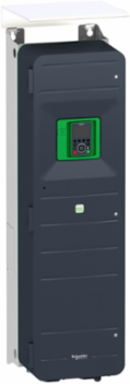

Altivar Process Variable Speed Drive, 55kW, 400-480V, IP55, Wall Mounted
Schneider Electric

Schneider Electric ATV650D55N4U Altivar Process Variable Speed Drive, 55kW, 400-480V, IP55, Wall Mounted

  • MPN: ATV650D55N4U
  • PPN: SCH-ATV650D55N4U
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Experience advanced motor control with the Altivar Process ATV600 variable speed drive from Schneider Electric, designed to optimize performance across a wide range of applications. This robust drive, rated at 55kW and operating within a voltage range of 400 to 480V, is engineered to deliver exceptional efficiency while ensuring reliable operation in demanding environments, thanks to its IP55 protection rating. With features such as programmable discrete inputs, multiple communication protocols including Modbus TCP, and a comprehensive suite of safety functions, this drive is tailored for both asynchronous and synchronous motors, making it an ideal choice for process and utility applications. Its compact design, measuring 345 mm in width and 1250 mm in height, allows for easy wall mounting, while its integrated EMC filter and extensive certifications ensure compliance with industry standards.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    China
    Depth375 mm

    Communications & Management Attributes

    Communication Port Protocol
    Modbus TCP, Modbus serial

    Complementary Attributes

    Maximum Switching Current
    relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V ACrelay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DCrelay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC
    Brake Chopper Integrated
    false
    Maximum Horse Power Rating
    60 hp heavy duty75 hp normal duty
    Maximum Output Frequency
    500 kHz
    Maximum Transient Current
    132 A 60 s heavy duty)116.6 A 60 s normal duty)
    Maximum Thdi<48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12
    Maximum Associated Fuse Rating160.0 A
    Maximum Input Current Per Phase97.2 A
    Maximum Output Voltage480.0 V
    Minimum Switching Currentrelay output R1, R2, R3 5 mA 24 V DC

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, SI
    Asynchronous Motor Control Profile
    constant torque standard, optimized torque mode, variable torque standard
    Electromagnetic Compatibility
    radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    Line Current
    84.2 A 480 V normal duty), 81.4 A 380 V heavy duty), 71.8 A 480 V heavy duty), 97.2 A 380 V normal duty)
    Local Signalling
    3 LEDs (dual colour) for embedded communication status4 LEDs (dual colour) for communication module status, 1 LED (red) for presence of voltage, 3 LEDs for local diagnostic
    Noise Level
    86/188/EEC, 69.9 dB
    Product Destination
    asynchronous motors, synchronous motors
    Sampling Duration
    5 ms +/- 1 ms DI5, DI6) - discrete input, 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input, 10 ms +/- 1 ms AO1) - analog output, 2 ms +/- 0.5 ms DI1...DI4) - discrete input
    Synchronous Motor Control Profile
    synchronous reluctance motor, permanent magnet motor
    Certificate Agency
    ATEX INERIS, TÃœV, CSA, UL, Bureau Veritas, ABS
    Environmental Class (During Operation)
    class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
    Environmental Class (During Transport)
    class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    143.0544461825352, 143 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    724 kg CO2 eq., 724.1628702370226
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    Yes
    Field Service Division
    IDIBS
    Weee Applicability
    Finished product
    Weee Product Category
    4
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    No
    Dangerous Goods Code
    LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier
    2
    Function Option
    Advanced
    Market Segmentation
    Industrial
    1 Phase Low Current Possible
    false
    Apparent Power
    59.7 kVA 480 V heavy duty)70 kVA 480 V normal duty)
    Base Load Current At High Overload
    88.0 A
    Braking To Standstill
    by DC injection
    Computer Port
    true
    Design Of Frequency Changer
    U converter
    Electrical Connection
    line side screw terminal 70...95 mm²motor screw terminal 70...120 mm²control removable screw terminals 0.5...1.5 mm² 20 AWG...16 AWG
    Enclosure Mounting
    wall mounted
    Frequency Resolution
    analog input 0.012/50 Hzdisplay unit 0.1 Hz
    Isolation
    between power and control terminals
    Maximum Associated Fuse Rating
    160.0 A
    Method Of Access
    slave Modbus TCP
    Mounting Mode
    wall mount
    Nominal Switching Frequency
    2.5 kHz
    Number Of Hw Interfaces Industrial Ethernet
    1
    Number Of Output Phases
    3
    Operating Position
    vertical +/- 10 degree
    Overvoltage Category
    III
    Phase
    3 phase
    Power Loss Static Current Independent
    32.0 W
    Product Or Component Type
    variable speed drive
    Prospective Line Isc
    50 kA
    Range Of Product
    Altivar Process ATV600
    Regulation Loop
    adjustable PID regulator
    Relative Symmetric Network Frequency Tolerance
    5 %
    Safety Function
    STO (safe torque off) SIL 3
    Software Version
    v6.2.5-6
    Supporting Protocol For Asi
    false
    Supporting Protocol For Can
    true
    Supporting Protocol For Devicenet Safety
    false
    Supporting Protocol For Interbus
    false
    Supporting Protocol For Lon
    false
    Supporting Protocol For Other Bus Systems
    false
    Supporting Protocol For Profinet Cba
    true
    Supporting Protocol For Profisafe
    false
    Supporting Protocol For Sercos
    false
    Sustainable Packaging
    No
    Total Lifecycle Carbon Footprint
    14 522 kg CO2 eq.
    Type Of Cooling
    forced convection
    Updatability
    Upgradeable through digital modules
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Application In Industrial Area Permitted
    true
    Database Version
    2024-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional-unit Description
    To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine&apos;s operating point for 90 kW for heavy duty electric motors for fluid management and industrial applications in IP55/UL type 1 conditions, at 380V to 480V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 6% uptime in full phase, 15% uptime in medium high phase, 35% uptime in medium low phase and 44% uptime in low phase of the 5000h operating time and 1000h of standby according to the CEMEP guide: pump/fan/compressor.
    Functional-unit Unit
    unit
    Energy Model - Manufacturing [A1-a3]
    Electricity mix; Production mix; low voltage; 2022; China, CN
    Energy Model - Use [B6]
    Electricity mix; Production mix; low voltage; 2022; Europe, EU-27
    Recyclability Potential In %
    88
    Width Nominal
    345 mm
    Emc Limit Value (Complied)
    true
    Maximum Acceleration Under Shock Load (During Storage)
    150 m/s² at 11 ms
    Maximum Acceleration Under Vibrational Stress (During Operation)
    10 m/s² at 13...200 Hz
    Maximum Acceleration Under Vibratory Load (During Transport)
    10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Storage)
    1.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Operation)
    class 3K5 according to EN 60721-3
    Permitted Relative Humidity (During Transport)
    class 2K5 according to EN 60721-3
    Supporting Protocol For Data-highway
    false
    Supporting Protocol For Interbus-safety
    false
    With Safety Function Safe Brake Management (Sbc/Sbt)
    false
    With Safety Function Safe Operating Stop (Sos)
    false
    With Safety Function Safe Speed Monitor (Ssm)
    false
    With Safety Function Safe Torque Off (Sto)
    true
    With Safety Function Safely Limited Speed (Sls)
    false
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8504404000
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    Connector TypeRJ45 on the remote graphic terminal)Modbus serial, RJ45 on the remote graphic terminal)Ethernet/Modbus TCP
    Insulation Resistance> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth
    Linearity ErrorAO1, AO2 +/- 0.2 % analog output, AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
    Motor Slip Compensationadjustable, can be suppressed, not available in permanent magnet motor law, automatic whatever the load
    Option Cardslot A communication module, PROFINET, slot A communication module, DeviceNet, slot A communication module, Modbus TCP/EtherNet/IPslot A communication module, CANopen daisy chain RJ45slot A communication module, CANopen SUB-D 9, slot A communication module, CANopen screw terminalsslot A/slot B digital and analog I/O extension module, slot A/slot B output relay extension module, slot A communication module, Ethernet IP/Modbus TCP/MD-Link, communication module, BACnet MS/TP, communication module, Ethernet Powerlink, slot A communication module, Profibus DP V1
    Protection Typesafe torque off drivemotor phase break drivethermal protection motor, safe torque off motor, motor phase break motorthermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive
    Supplyinternal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protectioninternal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection, external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection
    Transmission Rate10, 100 Mbits, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
    [Ue] Rated Operational Voltage380...480 V 55 kW 75 hp normal duty, 380...480 V 45 kW 60 hp heavy duty
    Environmental Class (During Storage)class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
    Carbon Footprint Of The Distribution Phase [A4]16.46099171841416, 16 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]42 kg CO2 eq., 42.149352791804326
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]13 597 kg CO2 eq., 13596.539036666036
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypeVariable speed drive - VSD Compacts
    TraceabilityYes
    Average Life Duration10 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1506002EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1923
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsYES_SSI2Yes
    Tier Id2
    Function Option IdADVANCED
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    4 Quadrant Operation Possiblefalse
    Application In Domestic And Commercial Area Permittedfalse
    Base Load Current At Low Overload106.0 A
    Capacity Of Dc Link5600.0 µF
    Data Format8 bits, configurable odd, even or no parity
    Device Short NameATV650
    Emc Filterintegrated 150 m IEC 61800-3 category C3
    Exchange Modehalf duplex, full duplex, autonegotiation Ethernet/Modbus TCP
    Housing Materialsheet steel
    MarkingCE
    Maximum Input Current Per Phase97.2 A
    Motor Power Kw45 kW heavy duty)55 kW normal duty)
    Network Frequency50-60 Hz
    Number Of Addresses1-247 Modbus serial
    Number Of Hw Interfaces Serial Rs4851
    Operating Element Presenttrue
    Optical Interface Presentfalse
    Permissible Temporary Current Boost1.5 x In 60 s heavy duty)1.1 x In 60 s normal duty)
    Power Loss Per Device Current Dependent1228.0 W
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Specific Applicationprocess and utilities
    Quantity Per Set1
    Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
    Relative Symmetric Mains Voltage Tolerance10 %
    ReturnabilityYes
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Supply Frequency50...60 Hz - 5...5 %
    Supporting Protocol For Bacnetfalse
    Supporting Protocol For Devicenetfalse
    Supporting Protocol For Foundation Fieldbusfalse
    Supporting Protocol For Knxfalse
    Supporting Protocol For Modbustrue
    Supporting Protocol For Profibustrue
    Supporting Protocol For Profinet Iotrue
    Supporting Protocol For Safetybus Pfalse
    Supporting Protocol For Suconetfalse
    Switching Frequency2...8 kHz adjustable2.5...8 kHz with derating factor
    Transmission FrameRTU
    Type Of Polarizationno impedance
    Vibration Resistance1 gn (f= 13-200 Hz) conforming to IEC 60068-2-61.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6
    With Safety Function Safe Programmable Logicfalse
    Pep CodeENVPEP1506002EN
    Pep Verification Date2026-06-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]No energy used
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    Height Nominal1250 mm
    [Us] Rated Supply Voltage380...480 V380...480 V - 15...10 %
    Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
    Maximum Acceleration Under Shock Load (During Transport)150 m/s² at 11 ms
    Maximum Acceleration Under Vibratory Load (During Storage)10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
    Maximum Deflection Under Vibratory Load (During Transport)1.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Storage)class 1K5 according to EN 60721-3
    Supporting Protocol For As-interface Safety At Workfalse
    Supporting Protocol For Ethernet/Iptrue
    Supporting Protocol For Tcp/Iptrue
    With Safety Function Safe Direction (Sdi)false
    With Safety Function Safe Position (Sp)false
    With Safety Function Safe Stop 1 (Ss1)false
    With Safety Function Safely Limited Position (Slp)false
    With Sft Fct Safe Stop 2 (Ss2)false
    Package Weight(Lbs)107.0 kg
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -15-40 °C (without derating), -15-40 °C (without derating), -15-50 °C, -15-50 °C40-50 °C (with derating factor), -15-40 °C (without derating), -15-40 °C (without derating)
    Ambient Air Transport Temperature
    -40-70 °C, -40-70 °C
    Operating Altitude
    <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, 1000...4800 m with current derating 1 % per 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI1506002EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1506002EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Ip Degree Of ProtectionIP55IP55IEC 60529, IP55IEC 61800-5-1
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint14522.366697595813
    Environmental DisclosureENVPEP1506002EN
    Nema Degree Of ProtectionNEMA 12
    Packaging Without Single Use PlasticNo
    Relative Humidity5-95 % without condensation IEC 60068-2-3
    Pep Verification Date2026-06-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altivar Process ATV600
    Product Or Component Typevariable speed drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Analogue Output Type
    software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bitssoftware-configurable current AQ1, AQ2 0...20 mA 10 bitssoftware-configurable current DQ-, DQ+ 30 V DC, software-configurable current DQ-, DQ+ 100 mA
    Output Voltage
    <= power supply voltage, <= power supply voltage
    Analogue Output Number
    2
    Discrete Output Number
    0
    Maximum Output Voltage
    480.0 V
    Nominal Output Power
    55.0 kW
    Speed Drive Output Frequency
    0.1-500 Hz
    Discrete Output Typerelay outputs R2A, R2C 30 V DC 5000 mArelay outputs R3A, R3C 30 V DC 5000 mArelay outputs R1A, R1B, R1C 250 V AC 3000 mArelay outputs R1A, R1B, R1C 30 V DC 3000 mArelay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA
    Relay Output Typeconfigurable relay logic R2 sequence relay NO 100000 cycles, configurable relay logic R3 sequence relay NO 100000 cycles, configurable relay logic R1 fault relay NO/NC 100000 cycles
    Continuous Output Current87 A 2.5 kHz heavy duty106 A 2.5 kHz normal duty
    Maximum Output Frequency500 kHz
    Nominal Output Current106.0 A
    Relay Output Number3

    Surge Protection And Filtering Attributes

    Emc Filter
    integrated 150 m IEC 61800-3 category C3

    Input Attributes

    Analogue Input Type
    AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
    Input Compatibility
    DI5, DI6 discrete input level 1 PLC IEC 65A-68STOA, STOB discrete input level 1 PLC IEC 61131-2, DI1...DI6 discrete input level 1 PLC IEC 61131-2
    Discrete Input Number
    8
    Number Of Input Phases
    3
    Discrete Input Logicpositive logic (source) DI1...DI8), < 5 V, > 11 V, negative logic (sink) DI1...DI8), > 16 V, < 10 V, 16 preset speeds
    Analogue Input Number3
    Discrete Input TypeDI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

    Batteries & Runtime Attributes

    Removable Battery
    Yes
    Loading video…

    Similar Products

    Loading carousel layout...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
