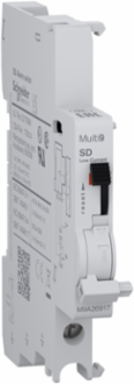

Schneider Electric M9A26917 Multi9 Auxiliary Contact 1 C/O, 2-100 mA, 24-250 VAC, IP20, 9 mm Width
- MPN: M9A26917
- PPN: SCH-M9A26917
CAD
$56.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Multi9 Auxiliary Contact 1 C/O, 2-100 mA, 24-250 VAC, IP20, 9 mm Width
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States
Depth68 mm
Physical Attributes
- Color
- Gray
Wire Stripping Length9 mm
Complementary Attributes
- Line Rated Current
- 2-100 mA at 24...240 V, AC 50/60 Hz, 2-100 mA at 24 V, DC, 2-100 mA at 48 V, DC, 2-100 mA at 60 V, DC, 2-100 mA at 130 V, DC, 2-100 mA at 220 V, DC
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Market Segment
- industry, OEM
- Certificate Agency
- CE, UKCA, UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.008856153653063902, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.012259823791646975
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0.5 kg CO2 eq., 0.5311163929133567
- Local Publishable Date
- 2025-07-09
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1216
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Standard
- Market Segmentation
- Commercial
- Comb Busbar And Distribution Block Compatibility
- top YES
- Device Short Name
- SD
- Local Signalling
- mechanical indicator
- Mounting Mode
- clip-on
- Operating Mode
- daisy chain up to 100 devices
- Product Or Component Type
- fault contact
- Returnability
- Yes
- Software Version
- v6.2.5-6
- Tightening Torque
- 1-1 N.m bottom
- Tropicalisation
- 2
- Pep Code
- ENVPEP2206015EN
- Pep Verification Date
- 2025-12-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; India, IN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential, In %
- 29
- Width Nominal
- 9 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Quality LabelsEAC, CCC
Connections - Terminalsscrew clamp terminal (bottom): 1 cable(s) 2.5-2.5 mm² - rigid, screw clamp terminal (bottom): 2 cable(s) 1.5-1.5 mm² - rigid
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.06571325142919211, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.24052840235170408
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id3
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Compatibility CodeSD
Energy Efficiency OptimizedFalse
Mounting Locationleft side of circuit-breaker
Mounting SupportDIN rail
Product AvailabilityStock - Normally stocked in distribution facility
RangeMulti9
Signal Contacts Composition1 C/O
Sustainable PackagingNo
Total Lifecycle Carbon Footprint0.9 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionIndicate locally and remotely electrical protection device status for 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh1.314
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal85 mm
[Ui] Rated Insulation Voltage500 V
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)38.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- Halogene Performance
- Halogen free plastic parts product
- China Rohs Regulation
- X
- Mercury Free
- Yes
- 9 Mm Pitches
- 1
- Eu Rohs Directive
- Compliant
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2206015EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.8584740241389638
Environmental DisclosureENVPEP2206015EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardNo
Product Compatibilitysingle terminal
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-12-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- fault contact
ETIM
- ETIM 8
- EC001286
ETIM 9EC001286
