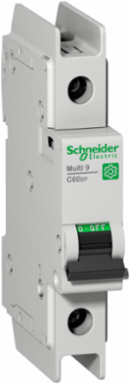

Schneider Electric M9F42102 Miniature Circuit Breaker, 1P, 2A, C Curve, 14kA, DIN Rail, IP20

MPN: M9F42102
PPN: SCH-M9F42102
UNSPSC: 39121603

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$54.43

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 2A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.

Features

The Schneider M9F42102 is a 2-Amp, single-pole high-performance miniature circuit breaker (MCB) from the Multi9 C60BP range. Engineered for global industrial applications, it is specifically designed for Original Equipment Manufacturers (OEMs) and control panel builders who require a compact, DIN-rail mounted solution that meets multiple international safety standards.
This breaker features a C-curve characteristic, designed to trip when it senses current between 7 to 10 times its rated capacity. This medium-trip threshold is ideal for protecting control circuits, lighting, and small inductive loads (like solenoids or small fans) where minor, temporary current surges occur during startup but where fast protection against short circuits is still required.
The M9F42102 is a "world-standard" component, certified under UL 489, CSA C22.2 No. 5, IEC 60947-2, and GB 14048.2. This allows engineers to use a single part number for equipment destined for North America, Europe, and Asia, simplifying inventory management and ensuring the final machine meets local electrical codes worldwide.
Despite its small 18mm width, the C60BP offers robust breaking capacities, including 10kA at 277V AC (UL 489) and 14kA at 240V AC. This ensures the breaker can safely interrupt severe short-circuit currents without failing, protecting downstream sensitive electronics and PLC components from catastrophic damage.
Beyond standard AC applications, the M9F42102 is rated for 60V DC circuits. This makes it a versatile choice for telecommunications, renewable energy battery systems, and industrial DC control loops where specialized DC-rated overcurrent protection is mandatory for safety.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Depth	72 mm

Physical Attributes

Color	Gray

Wire Stripping Length	14 mm for top or bottom connection

Complementary Attributes

Ics Rated Service Breaking Capacity	7.5 kA 75 % GB/T 14048.2 - 240 V AC15 kA 75 % EN/IEC 60947-2 - 60 V DC, 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC7.5 kA 75 % EN/IEC 60947-2 - 240 V AC, 2.25 kA 75 % GB/T 14048.2 - 415 V AC, 15 kA 75 % GB/T 14048.2 - 60 V DC
Line Rated Current	2 A 25 °C EN/IEC 60947-2
Uimp Rated Impulse Withstand Voltage	6 kVEN/IEC 60947-2

Ue Rated Operational Voltage	240 V AC 50/60 Hz, 415 V AC 50/60 Hz60 V DC
Ui Rated Insulation Voltage	500 V AC EN/IEC 60947-2

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Network Type	DC, AC
Connections Terminals	tunnel type terminal top or bottom) 1-25 mm² 18 AWG...8 AWG) - rigid, with ferrule, tunnel type terminal top or bottom) 1-16 mm² 18 AWG...8 AWG) - flexible
Carbon Footprint Of The Distribution Phase A4	0.01779281804793556, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.005773368063642206
Carbon Footprint Of The Use Phase B2 B3 B4 B6	9 kg CO2 eq., 9.155807692307693
Local Publishable Date	2026-07-13
Device Type	LV equipment - Low voltage circuit breaker
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1645
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Commercial
Connection Pitch	18 mm between devices
Control Type	toggle
Device Application	distribution
Electrical Durability	10000 cycles
Local Signalling	ON/OFF indication
Mechanical Durability	20000 cycles
Mounting Support	DIN rail
Number Of Protected Poles	1
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	miniature circuit-breaker
Range	Multi9
Returnability	Yes
Suitability For Isolation	yes EN/IEC 60947-2
Tightening Torque	2.5-2.5 N.m top or bottom
Total Power Losses	1.7 W
Tropicalisation	2 IEC 60068-1
Pop Directive	No POPs
Database Version	2022-01
Height Nominal	103 mm
Nbr. Of Units In Pkg.	1
Tsca Regulation	Does not contain Section 6H Chemical
Halogen Free Status	Halogen free plastic parts product
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20
Recyclability Potential In %	56

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Poles Description	1P
Certificate Agency	IEC, CCC, CSA, UL
Carbon Footprint Of The End Of Life Phase C1 To C4	0.35702425559224255, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.9 kg CO2 eq., 0.8624167309276377
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Contact Position Indicator	yes
Curve Code	C
Device Short Name	C60BP
Energy Efficiency Optimized	False
Magnetic Tripping Limit	8.5 x In +/- 20 % AC12 x In +/- 20 % DC
Mounting Mode	clip-on
Number Of Poles	1P
Power Losses Per Pole	1.7 W
Product Name	Multi9 C60
Provision For Padlocking	padlockable
Range Of Product	Multi9
Software Version	v5.9.4
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	10 kg CO2 eq.
Trip Unit Technology	thermal-magnetic
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rated Current 3	2 A
Data Source	extrapolated product
Width Nominal	18 mm
Customs Code	8536200040
Earth Leakage Protection	without
Silicone Free	No
Functional Unit Description	Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 240VAC and rated current 16A (In). This protection is ensured in accordance with the following parameters:& 10- Number of poles: 1& 10- Rated breaking capacity Icu: 10kA& 10- Tripping curve: C
Functional Unit Unit	unité (unit)
Energy Consumption On Product Lifetime In Kwh	22.338

Environment Attributes Main

Ambient Air Temperature For Storage	-40-80 °C, -40-80 °C
Halogene Performance	Halogen free plastic parts product
China Rohs Regulation	X
Mercury Free	Yes
Carbon Footprint	10.441346393255548
Ambient Air Temperature For Operation	-30-70 °C-30-70 °C
Eu Rohs Directive	Compliant
Ip Degree Of Protection	IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1304004EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Silicon Free	No
9 Mm Pitches	2
Environmental Disclosure	ENVPEP1304004EN
Halogen Content Performance	Halogen free plastic parts product
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	Yes
Relative Humidity	95-95 % 55-55 °C
Pep Verification Date	2023-03-02
Psr Version	PSR-0005-ed2-EN-2016 03 29
