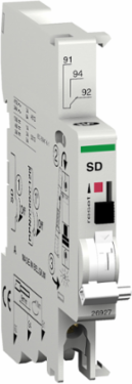

Schneider Electric M9A26927 Multi9 Fault Contact 1 SD 9mm 240/415V AC 3A
- MPN: M9A26927
- PPN: SCH-M9A26927
CAD
$24.89
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Multi9 SD electric auxiliary is a remote fault indicator contact. It is dedicated to C60 UL/CSA/IEC, iID products. It provides a remote position open/close and/or fault tripping indication of the associated device. The In rated operational current is under 24VAC to 240VAC, 3A under 415VAC. The width in 9mm pitches is 1. The product color is white (RAL9003). The dimensions are (W) 9mm x (H) 85mm x (D) 73.5mm. Product weight is 30g. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C.
Documentation & Downloads
Specifications
Key Specifications
- [Uc] Control Circuit Voltage
- 240...415 V AC 50/60 Hz || 24...130 V DC
- Product Or Component Type
- fault contact
- Signal Contacts Composition
- 1 C/O
- Device Short Name
- SD
9 Mm Pitches1
RangeMulti9
[In] Rated Current3-3 A at 415 V, AC 50/60 Hz || 6-6 A at <= 240 V, AC 50/60 Hz || 6-6 A at 24 V, DC || 2-2 A at 48 V, DC || 1.5-1.5 A at 60 V, DC || 1-1 A at 130 V, DC
Complementary
- Height
- 85 mm
- Comb Busbar And Distribution Block Compatibility
- top YES
- Net Weight
- 30 g
- [Ui] Rated Insulation Voltage
- 500 V
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV
- Depth
- 73.5 mm
Mounting SupportDIN rail
Connections - Terminalsclamp terminal bottom) 1 2.5-2.5 mm² AWG 14) - rigid || clamp terminal bottom) 2 1.5-1.5 mm² AWG 16) - rigid
Wire Stripping Length9 mm for bottom connection
Mounting Modefixed
Width9 mm
Tightening Torque1-1 N.m bottom
Environment
- Product Certifications
- CSA || PCT || UL || UR || CCC
- Standards
- EN/IEC 60947-5-1 || EN 62019-2
Ambient Air Temperature For Operation-25-50 °C
Ambient Air Temperature For Storage-40-85 °C
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1505007EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1505007EN
