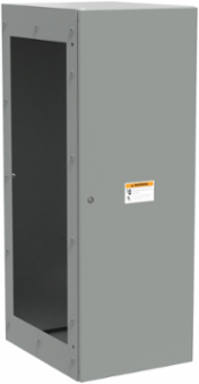

nVent Hoffman AXD542024C Sequestr High-Amp External Disconnect Type 4 12, 54.00x20.00x24.00, Gray, Steel
nVent Hoffman AXD542024C Sequestr High-Amp External Disconnect Type 4 12, 54.00x20.00x24.00, Gray, Steel
- MPN: AXD542024C
- UPC: 783510365561
- PPN: HOF-AXD542024C
- UNSPSC: 39121902
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2711.69/ EA
Description
Sequestr High-Amp isolates disconnect increasing system safety during maintenance applications. This Sequestr High-Amp External Disconnect Type 4 12, AXD542024C item measures 54.00x20.00x24.00 inch with material of Steel color Gray.
Features
- Seams continuously welded and ground smooth
- Interlocks with doors of main enclosure when the disconnect handle is powered ON to prevent opening when energized
- Disconnect handle mounts on main enclosure
- Designed to house cable-operated disconnect switches or breakers for mounting flexibility
- Maintains UL Type rating of main enclosure
- Quarter-turn, slotted 3-point latch installed; padlocking handle shipped loose to provide additional level of security
- Conductive back panel included
- Hinged on right side
- Removable door with hidden hinges for clean, aesthetic appearance
- Bonding provision on door
- Mounting and interlocking hardware included
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 508
- Protection Rating
- NEMA Type 4
- Finish
- Powder Coated
- Color Code
- ANSI 61
- Weight
- 149
- Size
- 54.00 x 20.00 x 24.00 inch
- NEMA Rating
- 4, 12
Height (H)1,372
Depth (D)613
Product FamilySequestr
ColorGray
Thickness (T)1.9
Sub BrandSequestr
MaterialMild Steel
NEMA ColorANSI 61 Gray
