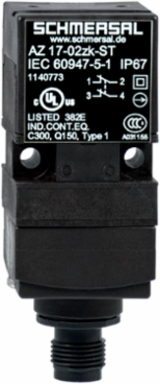

Schmersal 101140774 AZ 17 Safety Switch, 30 mm x 78.5 mm, IP67, 1 NC Contact, Electromechanical
Schmersal 101140774 AZ 17 Safety Switch, 30 mm x 78.5 mm, IP67, 1 NC Contact, Electromechanical
- MPN: 101140774
- PPN: SCM-101140774
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$173.49/ EA
Features
- Connector M12 x 1, 4-pole
- 30 mm x 78.5 mm x 30 mm
- Thermoplastic enclosure
- Double-insulated
- Long life
- small body
- Universal coding
- High level of contact reliability with low voltages and currents
- Insensitive to soiling
- 8 actuating planes
Specifications
Electrical data
- Thermal test current
- 10 A

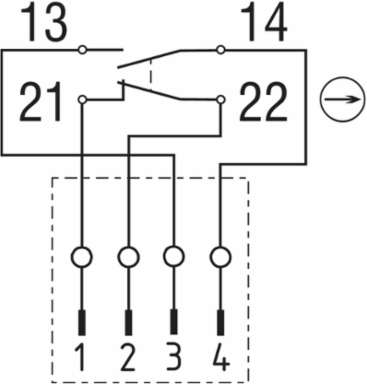

- Switching element
- NO contact, NC contact
- Switching frequency
- 2,000 /h
Required rated short-circuit current1,000 A
Switching principleslow action, positive break NC contact
Material of the contacts, electricalSilver
Note
- Note (General)
- Individual coding available on request

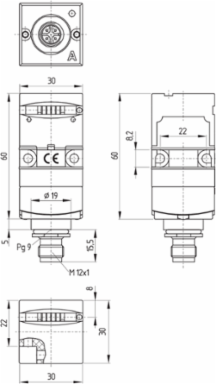

Mechanical data - Dimensions
- Length of sensor
- 30 mm
- Height of sensor
- 78.5 mm
Width of sensor30 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 250 VAC
- Overvoltage category
- III
- Rated impulse withstand voltage, connector 4-pole
- 2.5 kV
Rated impulse withstand voltage U4 kV
Degree of pollution3
Electrical data - Safety contacts
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
- Note, Utilisation category DC-13
- Connector 4-pole
Current, Utilisation category AC-154 A
Current, Utilisation category DC-134 A
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately. | Slot cover for dust-proof covering of the opening not in use
Safety classification - Safety outputs
- B
- 2,000,000 Operations
- Note (B
- at 10% I | and ohmic load
B1,000,000 Operations
General data - Features
- Increased latching force
- Yes
- Number of auxiliary contacts
- 1
- Number of safety contacts
- 1
Number of actuating directions2
Number of cable glands1
General data
- Standards
- EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-1
- Working principle
- electromechanical
- Gross weight
- 85 g
Coding level according to EN ISO 14119Low
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Electrical data - Auxiliary contacts
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
- Note, Utilisation category DC-13
- Connector 4-pin
Current, Utilisation category AC-154 A
Current, Utilisation category DC-134 A
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Other data
- Note (applications)
- sliding safety guard | removable guard | hinged safety guard
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -30 °C
- Permissible installation altitude above sea level, maximum
- 2,000 m
Ambient temperature-30 ... +80 °C
Storage and transport temperature, maximum+85 °C
Mechanical data - Connection technique
- Termination
- Connector plug M12, 4-pole, (A-coding)
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Positive break travel
- 11 mm
- Actuating speed, maximum
- 2 m/s
- Type of the fixing screws
- 2x M5
Latching force30 N
Positive break force per NC contact, minimum17 N
MountingScrews
Approvals - Standards
- Certificates
- BG | cULus | CCC
