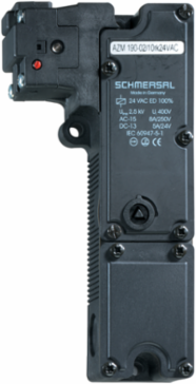

Schmersal 131030129 AZM190 Solenoid Interlock, 24 VDC, 41 mm x 178 mm x 52 mm, IP65/IP67
- MPN: 131030129
- PPN: SCM-131030129
CAD
$507.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
AZM190 Solenoid Interlock, 24 VDC, 41 mm x 178 mm x 52 mm, IP65/IP67
Features
- Manual release
- Thermoplastic enclosure
- Long life
- Interlock with protection against incorrect locking.
- 89 mm x 178 mm x 41 mm
- Actuating head can be repositioned by 4 x 90°
- 2 cable entries M 20 x 1.5
- Wiring compartment
- Slim design, particularly suitable for fitting on hinged doors, aluminium profiles and fencing
- Sealing mechanism to prevent the ingress of dirt
- Cut clamp termination
Documentation & Downloads
Specifications

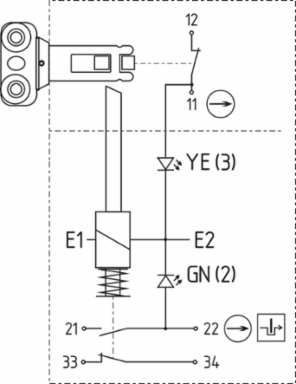

Electrical data
| Thermal test current | 4 A |
|---|---|
| Required rated short-circuit current | 1,000 A |
| Switching element | NO contact, NC contact |
| Switching frequency | 1.2 /h |
| Rated control voltage | 24 VDC |
|---|---|
| Electrical power consumption, maximum | 8.5 W |
| Switching principle | slow action, positive break NC contact |
| Material of the contacts, electrical | Silver |
Note
| Note (Manual release) | front | For maintenance, installation, etc. | For manual release using triangular key M3 (included in delivery) |
|---|

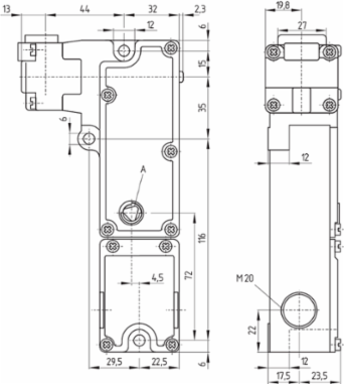

Mechanical data - Dimensions
| Length of sensor | 41 mm |
|---|---|
| Height of sensor | 178 mm |
| Width of sensor | 52 mm |
|---|
Ambient conditions - Insulation values
| Rated insulation voltage U | 250 VAC |
|---|
| Rated impulse withstand voltage U | 4 kV |
|---|
Electrical data - Safety contacts
| Voltage, Utilisation category AC-15 | 230 VAC |
|---|---|
| Voltage, Utilisation category DC-13 | 24 VDC |
| Current, Utilisation category AC-15 | 4 A |
|---|---|
| Current, Utilisation category DC-13 | 4 A |
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
Safety classification - Safety outputs
| B | 2,000,000 Operations |
|---|
| B | 1,000,000 Operations |
|---|
Electrical data - Magnet control
| Magnet switch-on time | 100 % |
|---|---|
| Test pulse interval, minimum | 50 ms |
| Test pulse duration, maximum | 5 ms |
|---|
General data - Features
| Power to lock | Yes |
|---|---|
| Number of actuating directions | 4 |
| Number of cable glands | 2 |
| Manual release | Yes |
|---|---|
| Number of auxiliary contacts | 1 | 2 |
| Number of safety contacts | 1 |
General data
| Standards | BG-GS-ET-19 | EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-1 |
|---|---|
| Working principle | electromechanical |
| Gross weight | 500 g |
| Coding level according to EN ISO 14119 | Low |
|---|---|
| Enclosure material | Glass-fibre, reinforced thermoplastic |
Electrical data - Auxiliary contacts
| Voltage, Utilisation category AC-15 | 230 VAC |
|---|---|
| Voltage, Utilisation category DC-13 | 24 VDC |
| Current, Utilisation category AC-15 | 4 A |
|---|---|
| Current, Utilisation category DC-13 | 4 A |
Safety classification
| Standards | EN ISO 13849-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Other data
| Note (applications) | sliding safety guard | removable guard | hinged safety guard |
|---|
Ambient conditions
| Degree of protection | IP65 | IP67 |
|---|
| Ambient temperature | +0 ... +50 °C |
|---|
Mechanical data - Connection technique
| Termination | Screw terminals |
|---|---|
| Cable section, minimum | 0.5 mm² |
| Note (Cable section) | All indications including the conductor ferrules. |
| Cable entry | 2 x M20 x 1,5 |
|---|---|
| Cable section, maximum | 1.5 mm² |
Mechanical data
| Mechanical life, minimum | 1,000,000 Operations |
|---|---|
| Holding force F | 2,550 N |
| Positive break force, minimum | 20 N |
| Holding force F | 1,950 N |
|---|---|
| Latching force | 20 N |
| Actuating speed, maximum | 0.3 m/s |
Approvals - Standards
| Certificates | TÜV | cULus | CCC |
|---|
